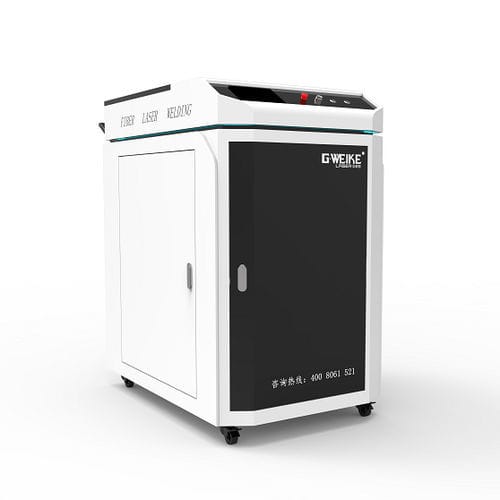

Laser welding machine manualstandalonefor metal
Add to favorites
Compare this product
Characteristics
- Technique
- laser
- Operational mode
- manual
- Configuration
- standalone
- Applications
- for metal
- Power supply
- 220V single phase
- Other characteristics
- seam, high-speed
- Power
1,000 W, 2,000 W, 3,000 W
- Weld thickness
Max.: 3 mm
(0.1 in)Min.: 0.5 mm
(0 in)
Description
Product Overview
Weldable: iron plate, stainless steel, galvanized sheet and aluminum. The handheld fiber laser welding machine provides simple operation, clean weld seams, high welding speed and no filler materials. It is optimized for thin metal plates and can replace conventional TIG/MIG or arc welding in many applications.
Easy Operation
Intuitive controls and a stable laser source enable fast setup and repeatable results. The unit supports continuous and pulse modes to adapt to different materials and thicknesses, reducing the need for post-weld rework.
Welding Head
Handheld swing welding mode with a lightweight, ergonomic head for flexible access. The interactive control enlarges the spot for improved seam formation. Multiple angle nozzles are available to reach different joint geometries.
360 Degree Welding
The focused laser beam produces a small, precise spot for accurate positioning and high-volume welding of micro and small components. Suitable for spot, butt, overlap, stack and sealing welds on thin-walled and precision parts with a small heat-affected zone and minimal distortion.
Industry Applications
Typical applications include kitchen cabinets, staircase and elevator components, shelving and ovens, stainless steel doors, windows and guardrails, distribution boxes and stainless steel furnishings.
Technical Parameters
Machine Model: Handheld metal laser welding machine
Laser Power: 1000 W, 2000 W, 3000 W (optional)
Laser wavelength: 1070 nm
Fiber length: Standard 10 m / Maximum 15 m
Welding speed range: 0–120 mm/s
Cooling: Industrial water chiller
Working environment temperature range: 15–35 ℃
Recommended welding thickness: 0.5–3 mm
Working voltage: 220 V
Technical Specifications
Weldable: iron plate, stainless steel, galvanized sheet and aluminum. The handheld fiber laser welding machine provides simple operation, clean weld seams, high welding speed and no filler materials. It is optimized for thin metal plates and can replace conventional TIG/MIG or arc welding in many applications.
Easy Operation
Intuitive controls and a stable laser source enable fast setup and repeatable results. The unit supports continuous and pulse modes to adapt to different materials and thicknesses, reducing the need for post-weld rework.
Welding Head
Handheld swing welding mode with a lightweight, ergonomic head for flexible access. The interactive control enlarges the spot for improved seam formation. Multiple angle nozzles are available to reach different joint geometries.
360 Degree Welding
The focused laser beam produces a small, precise spot for accurate positioning and high-volume welding of micro and small components. Suitable for spot, butt, overlap, stack and sealing welds on thin-walled and precision parts with a small heat-affected zone and minimal distortion.
Industry Applications
Typical applications include kitchen cabinets, staircase and elevator components, shelving and ovens, stainless steel doors, windows and guardrails, distribution boxes and stainless steel furnishings.
- Cabinet kitchens
- Staircase and elevator components
- Shelves and ovens
- Stainless steel doors, windows and guardrails
- Distribution boxes
- Stainless steel furnishings and related industries
Technical Parameters
Machine Model: Handheld metal laser welding machine
Laser Power: 1000 W, 2000 W, 3000 W (optional)
Laser wavelength: 1070 nm
Fiber length: Standard 10 m / Maximum 15 m
Welding speed range: 0–120 mm/s
Cooling: Industrial water chiller
Working environment temperature range: 15–35 ℃
Recommended welding thickness: 0.5–3 mm
Working voltage: 220 V
Technical Specifications
- Machine Model: Handheld metal laser welding machine
- Laser Power: 1000 W, 2000 W, 3000 W (optional)
- Laser wavelength: 1070 nm
- Fiber length: Standard 10 m, Maximum 15 m
- Welding speed range: 0–120 mm/s
- Cooling: Industrial water chiller
- Working environment temperature range: 15–35 ℃
- Recommended welding thickness: 0.5–3 mm
- Working voltage: 220 V
Catalogs
No catalogs are available for this product.
See all of GWEIKE LASER‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):

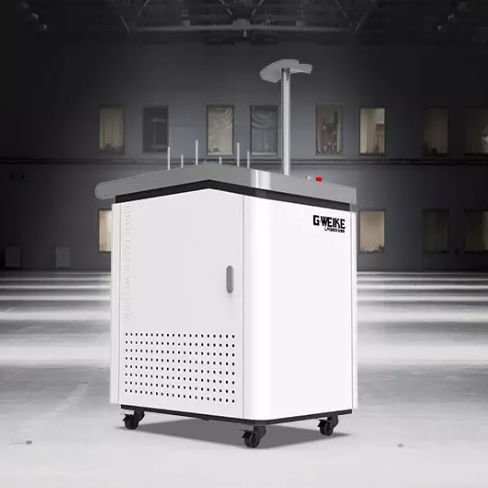

Other GWEIKE LASER products
