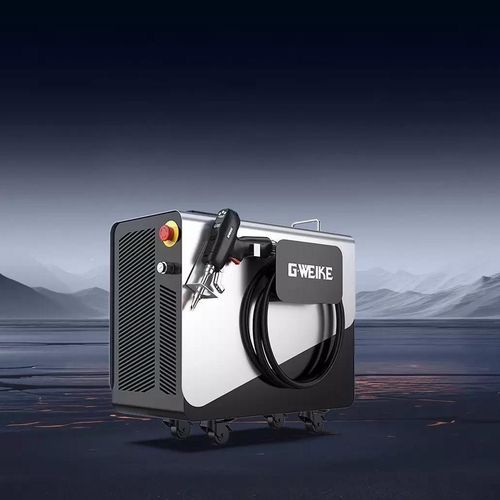

Fiber laser welding machine LCW800/1200A

manualfor automotive parts220V single phase

Overview
The LCW800/1200A is an air‑cooled handheld fiber laser system integrating welding, cutting and cleaning functions in a single portable unit. It is designed for quick setup, field mobility and multi‑process operation in industrial environments.

Forced convection air cooling
Heat is transferred to an aluminum radiator and expelled by a fan, enabling rapid air exchange to reduce device temperature while keeping size and weight compact.

Mobility
Compact dimensions and low weight allow easy repositioning and use in confined workspaces.

Compatibility
Supplied with multiple dedicated nozzles: four welding nozzle types for internal, external and flat welding plus specialized cutting and cleaning nozzles to cover varied applications.

Versatility
Three integrated functions (welding, cutting, cleaning) support diverse processing tasks. Cleaning width up to 80 mm to increase cleaning throughput.

Capability

• 22 prefabricated parameter sets and 9 user‑customizable parameter groups for rapid configuration.
• Intelligent wire‑feeding system enabling feed and retract without arc, preventing wire sticking.

Sample display
Images show representative results for welding, cutting and surface cleaning operations.

Applications
Suitable for automotive components, aerospace parts, cabinet fabrication and general mechanical manufacturing.

Technical parameters (table)
Machine model | LCW800/1200A
Laser power | 1500W
Wavelength | 1080nm
Working voltage | Single‑phase 220V 50Hz/60Hz
Fiber length | 10–20 m (support customization)
Power adjustment range (%) | 10–100 (stepless)
Laser head weight | 0.8 kg
Dimensions | 580 x 275 x 680 mm
Cooling | Air cooling

Technical specifications

• Machine model: LCW800/1200A
• Laser power: 1500 W
• Wavelength: 1080 nm
• Working voltage: Single‑phase 220 V 50/60 Hz
• Fiber length: 10–20 m (support customization)
• Power adjustment range: 10–100% (stepless)
• Laser head weight: 0.8 kg
• Dimensions: 580 x 275 x 680 mm
• Cooling method: Air cooling
• Functions: Welding, cutting, cleaning (3‑in‑1)
• Cleaning width: up to 80 mm
• Nozzles: 4 types for internal, external and flat welding
• Parameter presets: 22 prefabricated + 9 customizable groups
• Wire feeding: Intelligent off‑arc feed and retract to prevent wire sticking
