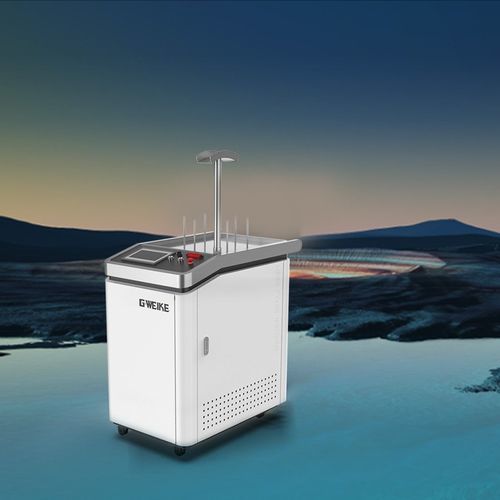

Laser cleaning machine LC series

manualfor castingfor the aerospace industry

Overview
LC Series laser cleaning machines provide eco-friendly, non-destructive cleaning for rust and paint removal on industrial metals. They enable precise positioning for cleaning micrometer-level contaminant particles and protect fragile surfaces while reducing cleaning costs by up to 80% compared to chemical cleaning.

Key benefits

• Easy to operate: No need for professional welders; simple training is sufficient to operate the system.
• Non-destructive operations: Capable of cleaning sensitive materials such as aluminum, carbon, stainless steel, carbon fiber-reinforced polymers and coated materials without damage; able to clean fine gaps.
• Green and energy-efficient: Precise, targeted cleaning that reduces consumable/chemical usage and operating costs.

Applications

• Metal cleaning
• Mold cleaning
• Degreasing of precision components
• Aircraft shell rust removal

Sample display
Sample images and cleaning demonstrations are provided showing cleaning results on typical substrates and components.

Technical Parameters (table)
Model | LC100 | LC300 | LC500
Laser power | 100 | 300 | 500
Dimensions | 910*540*1100mm | 910*540*1100mm | 910*540*1100mm
Scanning range | 100*100mm | 100*100mm | 200*200mm
Power adjustment range (%) | 10-100 (Gradient adjustable) | 10-100 (Gradient adjustable) | 10-100 (Gradient adjustable)
Mobile method | Handheld | Handheld | Handheld
Cooling method | Air cooling | Air cooling | Air cooling
Laser head weight | ≤0.76KG | ≤0.76KG | ≤0.9KG
Rated voltage | 220V 50Hz/60Hz | 220V 50Hz/60Hz | 220V 50Hz/60Hz

Characteristics / technical specifications

• Series name: LC Series
• Available models: LC100, LC300, LC500
• Laser power options: 100 W / 300 W / 500 W
• Machine dimensions (all models): 910 x 540 x 1100 mm
• Scanning ranges: 100 x 100 mm (LC100 & LC300), 200 x 200 mm (LC500)
• Power adjustment: 10%–100%, gradient adjustable
• Operation mode: Handheld (mobile method)
• Cooling: Air cooling
• Laser head weight: ≤0.76 kg (LC100/LC300), ≤0.9 kg (LC500)
• Rated voltage: 220V, 50Hz/60Hz
