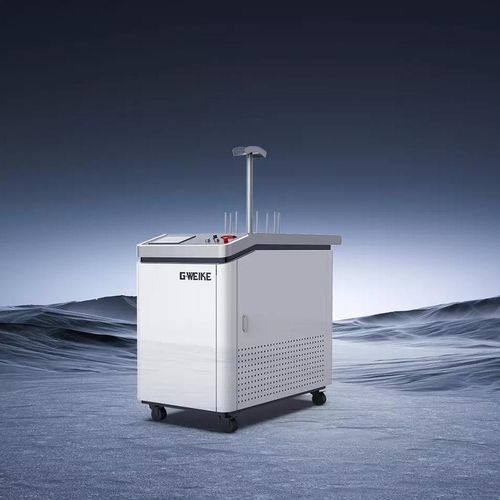

Fiber laser welding machine LCW series

manualstandalone220V single phase

Overview
Handheld Fiber Laser Welding, Cleaning and Cutting Machine (LCW Series). Integrates welding, cleaning and cutting functions in a compact, portable multifunctional unit suitable for on-site and workshop use.

Key features

• Integrated 3-in-1 functions: welding, cleaning and cutting in a single device.
• Compact and flexible: small footprint and high maneuverability for efficient processing of small parts.
• High-efficiency welding: smooth, visually clean weld seams; 2–10× faster than conventional welding methods.

Sample Display
Images show typical processing results and representative sample parts.

Applications
Suitable for multifunctional laser welding, cutting and cleaning tasks across industrial applications including repair, fabrication and surface preparation.

Technical Parameters
Models: LCW1500 | LCW2000 | LCW3000
Laser power (W): 1500 | 2000 | 3000
Laser wavelength: 1080 nm
Working voltage: LCW1500 – single unit 220V 50/60Hz; three-unit 380V 50/60Hz | LCW2000 – single unit 220V 50/60Hz; three-unit 380V 50/60Hz | LCW3000 – three-unit 380V 50/60Hz
Fiber length: 10–20 m (customizable)
Power adjustment range: 10%–100% (gradient adjustable)
Laser head weight: 0.8 kg
Dimensions (mm): LCW1500/2000 – 910 × 540 × 1100; LCW3000 – 1210 × 650 × 1200

Technical specifications

• Series: LCW Series (LCW1500, LCW2000, LCW3000)
• Laser power options: 1500 W, 2000 W, 3000 W
• Laser wavelength: 1080 nm
• Working voltage configurations: 220V single-unit or 380V three-unit (model dependent)
• Fiber length: 10–20 m (customizable)
• Power adjustment: 10%–100% (gradient adjustable)
• Laser head weight: 0.8 kg
• Dimensions (mm): LCW1500/2000 – 910 × 540 × 1100; LCW3000 – 1210 × 650 × 1200
