Water rotary union 9001 ND
for hot oilfor airfor vacuum

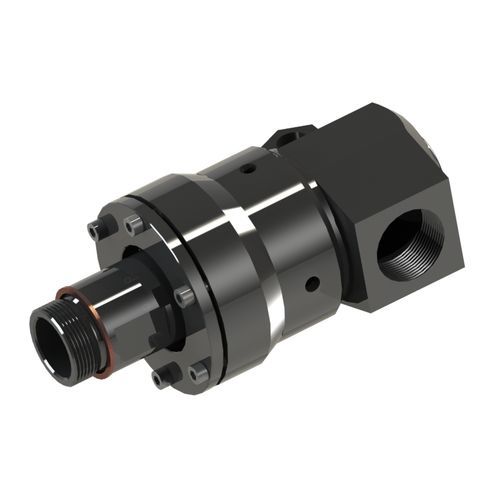

Water rotary union - 9001 ND - HAAG + ZEISSLER Maschinenelemente GmbH - for hot oil / for air / for vacuum

Water rotary union - 9001 ND - HAAG + ZEISSLER Maschinenelemente GmbH - for hot oil / for air / for vacuum - image - 2

Water rotary union - 9001 ND - HAAG + ZEISSLER Maschinenelemente GmbH - for hot oil / for air / for vacuum - image - 3

Water rotary union - 9001 ND - HAAG + ZEISSLER Maschinenelemente GmbH - for hot oil / for air / for vacuum - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for water, for hot oil, for air, for vacuum, for steam, for chemicals

Number of passages

2-passage

Material

steel

Other characteristics

custom-made

Rotational speed

700 rpm, 1,500 rpm
(4,398.23 rad.min-1, 9,424.78 rad.min-1)

Pressure

6 bar, 10 bar, 17 bar
(87 psi, 145 psi, 247 psi)

Nominal size

Min.: 0.25 in

Max.: 1.5 in

Description

Rotating joint type ND – new design with bellows system cartridge, ballbearings, for universal use Product characteristics universal use – cooling, heating, clamping with bellows sealing cartridge fast change CD-cartridge-design sealingmaterial ceramics/graphite ballbearings (can be relubricated) no elastomers – therefore no temperature and chemical resistance problems no loose parts, f.e. springs robust and less influence of dirty media self supporting – no additional support necessary available in stainless steel
