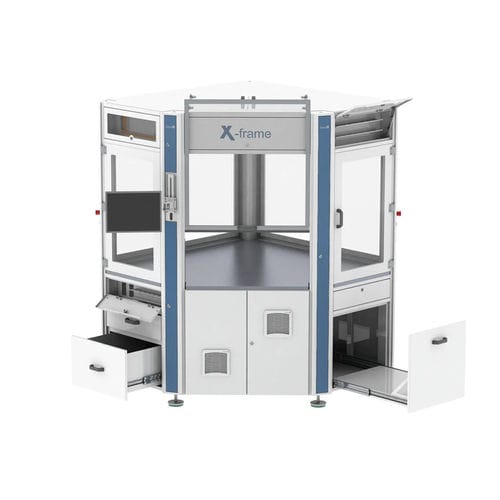

Octagonal machine frame X-frame

hexagonalfor rotary indexing system

Round transfer systems in hexagonal and octagonal shapes provide a wide range of options for the supply and removal of materials that are then processed in the cell. For large systems, cells with more than eight sides are also constructed. Polygonal cells are also ideal for areas where there is limited space around the cell. In principle, all X-frame cells can be equipped with the proven standards. High-quality, precisely machined welded frames are manufactured to accommodate large rotary indexing tables. häwa supplies the rotary indexing cells including work plates to accommodate the individual process applications. Customized systems for linear transfer machines are also possible. Mounted swing arm systems can be swung around the cell at an angle of approximately 340 degrees. Application-oriented cell shape Polygonal cells are suitable for applications where there is limited space around the cell. Swivel arm systems The swing-arm systems can be swiveled around the cell at an angle of approx. 340 degrees.
