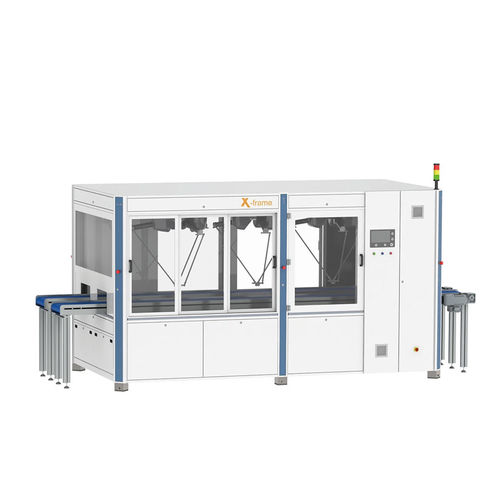

Machine frame for robotic applications X-frame

Robotics is one of the leading disciplines of the 21st century. Industry in particular is taking advantage of this to advance automation with highly developed robotic applications. The mostly sensitive industrial robots generate high torques and require protection by particularly stable robot cells. The X-frame machine frame can be used for a wide range of robotic applications. Hanging and standing robots are possible, as are lateral adaptations. Depending on the requirements, three different load stabilities are available for the robot cells. The X-frame can be individually constructed from these standardized designs. The three systems are compatible with each other, so that they can be optimally used in any area of a plant. This significantly reduces weight and costs. If required, high-quality, annealed and portal milling machine-processed welding frames can be integrated into the X-frame system. Even mobile cobot units, which are now frequently used in industry, are feasible with the X-frame for human/robot collaboration. How can X-frame machine frames and robotics be combined? With the X-frame machine frame, häwa has developed a solution that can be used for a wide variety of robotic applications. There is a choice of different X-frame struts, depending on the load. The horizontal and vertical struts are manufactured in different levels of stability, which can be easily combined thanks to the modular design. The cable routing runs in the struts themselves. Individual adjustments are also possible here to avoid oversizing. With the X-frame machine frame, Häwa has developed a solution that can be used for a wide range of robot applications.
