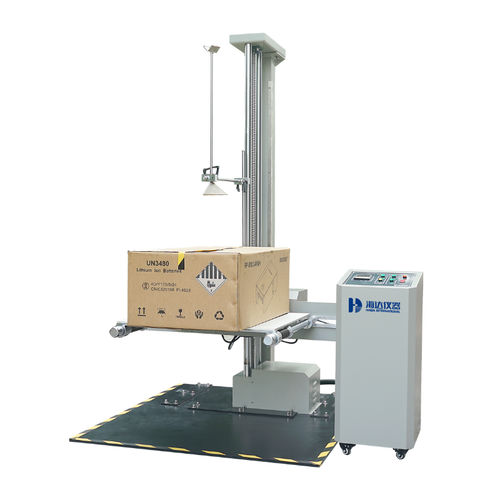

Drop tester HD-A520-1

Product description: Double-wing drop test machine During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And the Double-wing drop test machine simulates the drop/ fall of a finished product to evaluate the damage. Standard test of packaged freights (surfaces, corners, and edges), etc. can be performed efficiently with a high accuracy. Standard Specifications: Drop height : - 400-1500mm (can be customized) Display method: - Digital display Max. weight of sample: - 60kg (can be customized) Max. size of sample: - (L*W*H) 800*800*800mm Drop panel area: - 150*180*8mm (material is Solid steel plate) Control box dimension : - (L*W*H) 350*350*1100mm Deviation of drop horizon: - Less than 1° Machine size: - (L*W*H)1400*1200*2200mm Design Criteria(not limited to the following): ISO 2248, JIS Z0202-87, GB/T4857.5-92,ista Application: Large-scale furniture (furniture), large-size household appliances such as LCD TV, air conditioning, washing machines, refrigerators and other products, packaging zero drop test Features: 1. Outside material: advanced paint coat 2. It adopts double wings to fix the products well when testing. 3. Power system: drive device/dropping device
