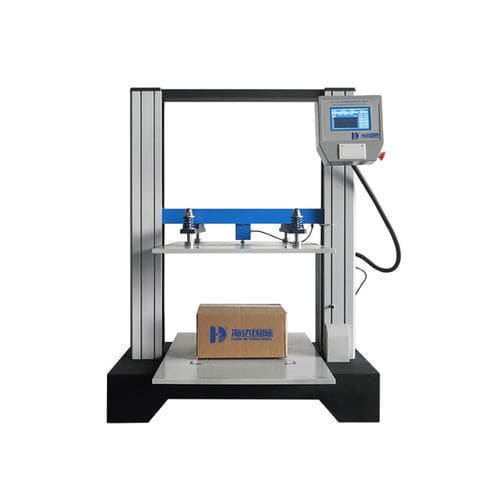

ASTM-D642 Carton Compression Testing Instrument
Minimum 1 SET
Delivery 15 days after order.
Model HD-A501-800
Country China
BrandName HD
Package Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment L/C, D/P, T/T
Price FOB, CIF
Specifications
ASTM-D642 Carton Compression Testing Instrument
1.High quality
2.2 years warranty
3.Up to TAPPI-T804,
4.Reasonable price
1.About the machine:
ASTM-D642 Carton Compression Testing Instrument electronic test and measurement instrument is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.
2.Design criteria:
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4
3.Specifications:
ASTM-D642 Carton Compression Testing Instrument
Model HD-A501-800
Unit (switchable) Kg, Lb, N
Capacity (optional) 2T
Load Resolution 1/100,000
Stroke (exclude the grips) 400 mm
Load Accuracy ≤0.5%
Test Space (L×W×H) 800×1000×1000mm
Speed of Compression 10 ± 3 mm/min
Operation Mode PC
Report Items Serial number, Peak value, Average value, Designated holding pressure value; all memorable
