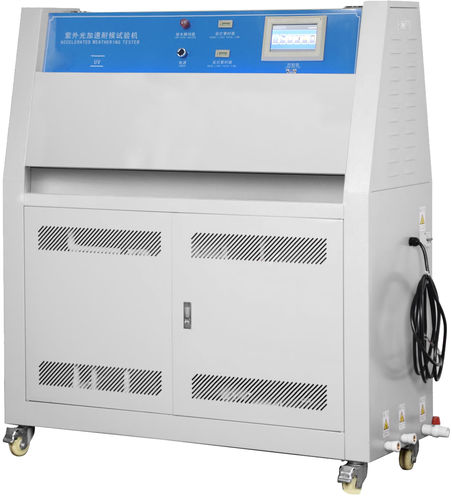

Climate chamber HD-E802
temperatureUV light agingfor the aeronautical industry

climate chamber
climate chamber
climate chamber
climate chamber
climate chamber
climate chamber
climate chamber
Add to favorites
Compare this product


Characteristics

Type
climatic
Controlled parameter
temperature
Test type
UV light aging
Application domain
for the aeronautical industry
Product applications
for composite materials, for electrical equipment, for automobiles, for vehicles, for materials testing machines
Other characteristics
accelerated
Temperature

70 °C
(158 °F)

Length

1,460 mm
(57.48 in)

Width

1,300 mm
(51.2 in)

Depth

500 mm
(20 in)

Description

UV lamp accelerated environment tester Minimum 1 SET Delivery 15 days after order. Model HD-E802 Country China BrandName HD Package Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. Payment L/C, D/P, T/T Price FOB, CIF Product description Accelerated Weather UV aging test chamber simulates damaging effects of long term outdoor UV spectra of sunlight , heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality UV Accelerated Weather chamber Usage: Accelerated Weather Testing / UV Testing chamber is mainly used in paint and ink paint, resins, plastics, printing and packaging, aluminum, adhesives, car and motorcycle industry, cosmetics, metals, electronics, electroplating, medicine and other fields. Technical parameters Item Specification Chamber dimension (W*D*H) 1300*500*1460mm Chamber material SUS#304 stainless steel Temperature range RT to 70℃ Temperature fluctuation ≤±1.0℃ Temperature uniformity 3℃ Humidity range: ≥75%RH Controller Programmable controller, LCD touch screen Control mode Balance temperature humidity control (BTHC) Test cycle setting Exposure, condensation and water spray test cycle is programmable Water spray cycle Spray 18mins in every 120mins / spray 12mins in every 60mins Water usage 8L/day Distance from sample to lamp 55±2mm Centre distance between lamps 65~70mm Irradiance range 0.45~0.90W/m2 UV lamps Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
