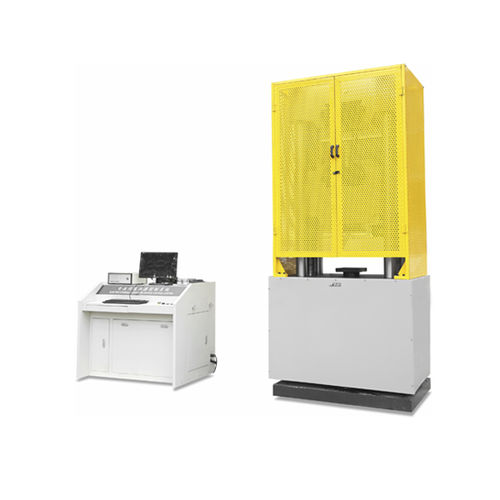

Compression testing machine HD-B616-3

compression testing machine
compression testing machine
Add to favorites
Compare this product


Test type
compression, universal, tensile, bending, tension, shearing
Operating mode
Test material


Hydraulic Universal Tensile Testing Machine with Computer Control Minimum1 SET Delivery15 days after order. ModelHD-B616-3 CountryChina BrandNameHD PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. PaymentL/C, D/P, T/T PriceFOB, CIF Structure introduction: Hydraulic Universal Testing Machine is mainly used to execute the tension, compression, bending, shearing etc. test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances. The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space. Hydraulic Universal Testing Machine adopts oil pressure transducer to measure load, use computer control & display load. Main specifications: Model: HD-B616-3 Max. Test load: 100T Relative error of indicate value of load : ±1% Max. Ram stroke: 250mm Max. Tensile space: 800mm(including piston stroke) Max. Compression space: 700mm(including piston stroke) Display: Computer control and display Tensile grips for round specimen : φ6-φ26mm Tensile grips for flat specimen: 0-15mm Distance for two columns: 500mm Upper and lower platen size: 200x200mm The span of bending: 450mm Width of bending roller: 140mm Dia. of bending roller: 30mm


No catalogs are available for this product.

See all of HAIDA EQUIPMENT CO., LTD‘s catalogs


Tensile Test Equipment
