Compression test machine 5077-HDPC-controllablecylinderfor plastics
Add to favorites
Compare this product
Characteristics
- Test type
- compression
- Operating mode
- PC-controllable
- Test material
- for plastics, for packaging, cylinder
- Sector
- for laboratory, for the packaging industry
- Technology
- electric
- Configuration
- vertical, benchtop
- Other characteristics
- precision
Description

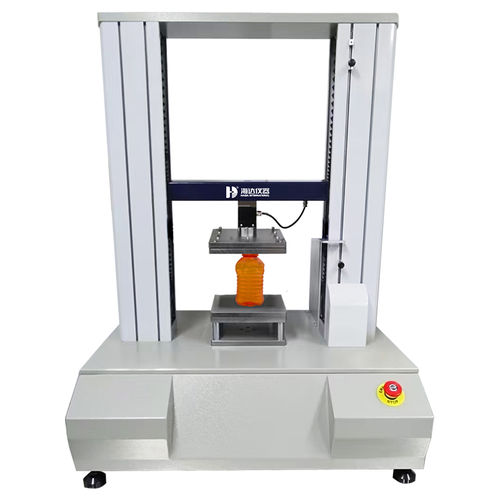

Bottle Compression Test Machine is suitable for various carbonated beverage bottles, mineral water bottles, plastic bottles, cans, composite cans, etc. to perform vertical pressure strength, top pressure strength and other performance tests. The instrument adopts a ball screw transmission system, which can achieve stepless speed regulation.
It is mainly used for vertical pressure tests of various volumetric bottles. Users only need to place the sample between the fixtures, and the intelligent vertical pressure tester will complete the entire test process. Professional automatic testing software records the entire test process curve. It is a must-have test instrument for various quality inspection agencies, beverage manufacturers, and packaging material manufacturers.
Test standards: ISO1924/2, QB/T1670-92, GB/T2914, GB/T 453
Capacity - 500kg, imported load cell
Load resolution - 1/250,000
Load Precision - Within ± 0.5%
Motor - 400W Panasonic servo motor
Operation Mode - Controlled by PC with software, Windows 10 operation
Test Speed - 0.1-500mm/min adjustable
Max. Stroke - 600mm (excluding fixture)
Test unit - gf/kgf/N/kN/lbf/T
Dimensions - (L*W*H)790 x 610 x 1100mm
Weight - Approx. 170 kg
Power - 1∮, 220V, 500W
