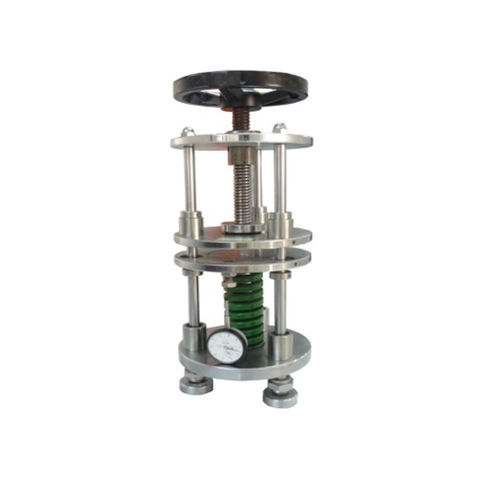

Resilience tester hd13

for rubber

INTRODUCTION This machine is used to testing resilience of the rubber products after a certain and time and pressure. Take the standard test piece, the distribution  flated on the test plate, clamped  between two plates, the release of the specimen and cooling after prescribed time, respectively to measure  the center thickness of test film and then use the formula to calculate its compression resilience STANDARD FEATURES Nos of sample pressure plate： 9 pcs φ97mm, 3mm thickness Max capacity： 500kgf Dial indicator： 50mm Measure sample Thickness： 9.52mm Sample size A： MethodA:foam Ø29.0 mm, Non-foaming material Ø14.5 mm Sample size B： Method 1:foam Ø25.4 mm, Non-foaming material Ø12.7 mm
