Insulation tester HD-P860
temperature

insulation tester
insulation tester
Add to favorites
Compare this product

Characteristics

Test type
insulation, temperature

Description

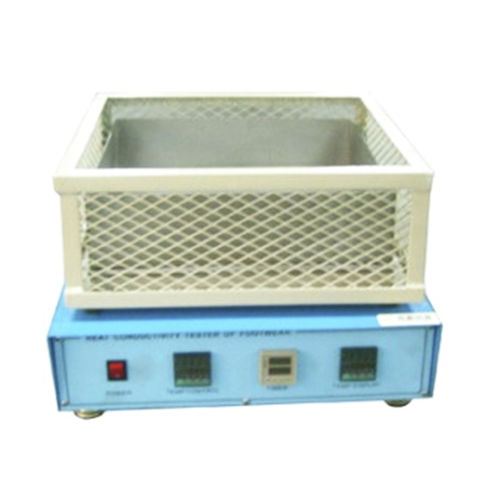

Temperature Controll Tape Retentivity Test Machines Minimum1 SET Delivery15 days after order. ModelHD-C527-1 CountryChina BrandNameHD PFootwear heat insulation tester PaymentL/C, D/P, T/T PriceFOB, CIF Footwear heat insulation tester PRODUCT DESCRIPTION This tester is used to determine the heat insulation performance for the whole shoe. Place the specimen (a whole shoe) on the hotplate with a specified temperature for a certain period to examine the increase of temperature inside of the shoe. TEST STANDARD ISO 20344 5.12 STANDARD PARAMETER ItemSpecification Sandbox size400*400*80mm Test temperature(150±5)℃ or (250±5)℃ Sand height≥5mm Sand size(0.3-1.0)mm Heat transfer mediumSteel ball: Φ5mm; 4kg Temperature control accuracy±0.5℃ Hot plate max. temperature250℃ Heating power2.5kw PowerAC220v, 5A Machine volumeAppro. 500*500*360mm Weight53kg
