Stiffness tester hd11

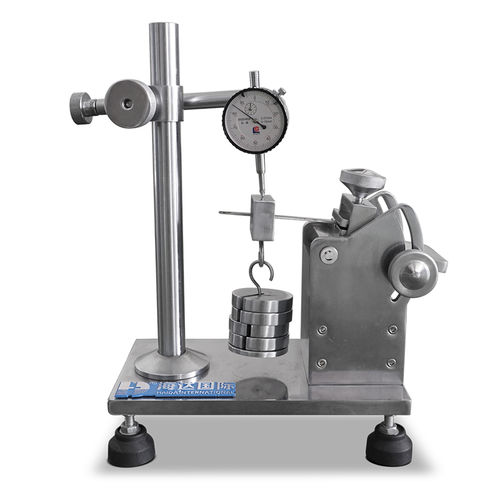

Application This machine is used to measure the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes. The shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward end. The amount of bending is measured and used to calculate the flexural rigidity of the shank. STANDARD QB/T 1813 Standard Features Rotation angle： 30° Length of measuring clip： 60±0.02mm Depth of clamp for front end： 12mm Load： 200g, 4pcs Controller： Pointer type Weight： Approx. 20kg Power ： 1 phase, AV 220V, 50/60HZ Size (W*D*H)： 45x20x45cm
