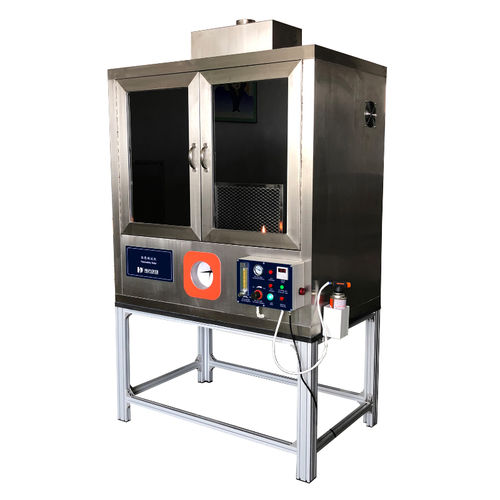

Flammability testing machine 6029-HDmanualfor furniturefor foam
Add to favorites
Compare this product
Characteristics
- Test type
- flammability
- Operating mode
- manual
- Test material
- for foam, for furniture
- Sector
- for laboratory
- Technology
- combustion
Description
Soft Furniture Flammability Tester
APPLICATIONS & TEST PURPOSE
This machine is used to simulate the ignitability of some special parts of furniture assembly placed in a certain sequence when ignited by a certain amount of heat, providing reference data for furniture design and manufacturing
TEST STANDARD:BS 5852
STANDARD FEATURES
Inner dimensions of backrest frame :450±2×300±2mm
Inner dimensions of chair frame: 450±2×150±2mm
Inner dimensions of backrest frame :450±2×450±2mm
Inner dimensions of chair frame :450±2×300±2mm
The flow velocity of butane:45+/-2ml/min（Temperature25℃）
Flame height :35mm
Stainless steel combustion tube outer diameter :8.0±0.1mm
Inner diameter：6.5±0.1mm
Length：200+/-5mm
Data on cigarettes:Length:68mm /Diameter:8mm/Weight:1g /combustion speed:50mm/12.03min
