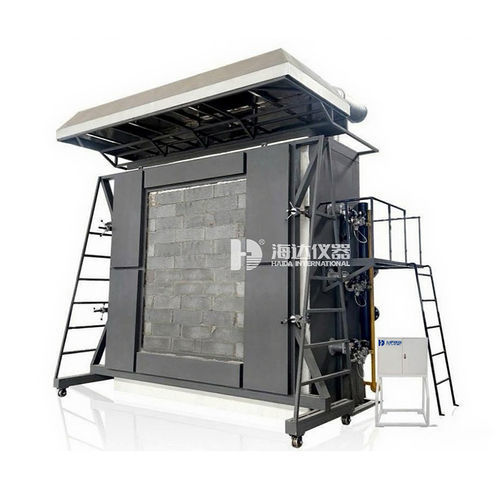

Climate chamber 6045-HDtemperatureflammabilityheating
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature
- Test type
- heating, flammability
- Product applications
- for windows, glass
- Application domain
- laboratory
- Configuration
- vertical
- Options and accessories
- temperature regulator
- Other characteristics
- for high temperatures
- Temperature
Max.: 1,300 °C
(2,372 °F)Min.: -200 °C
(-328 °F)- Width
3,000 mm
(118.1 in)- Depth
1,500 mm
(59 in)- External height
3,000 mm
(118.11 in)
Description
Product Description
Compliance Standards
Technical specifications
- Designed for fire resistance tests of products installed in vertical partition openings — such as doors, roller shutters and glazed elements — to determine integrity and insulation failure times.
- Suitable for fire resistance tests referenced in national GB/T standards, including fire doors, glazed components, fire shutters and fire-resistant glass.
- Developed with over 20 years of technical experience to provide accurate temperature control and stable operation; furnace heating and pressure conditions comply with GB/T 9978.1 requirements.
- Site requirements and installation constraints: recommended foundation load ≥750 kg/m²; required test area ≥150 m²; minimum ceiling height ≥5.5 m.
Compliance Standards
- GB/T 9978.1-2008 Fire Resistance Tests — General Requirements
- GB/T 12955-2008 Fire Door Test Standards
- GB/T 7633-2008 Fire Resistance of Doors and Shutters
- GB 16809-2008 Fire Window Standards
- GB/T 12513-2006 Glazed Components Fire Resistance Test
- GB/T 8478 Aluminum Alloy Door and Window Standards
- GB 15763.1-2009 Fire-Resistant Safety Glass
Technical specifications
- Model: 6045-HD
- Service life: ≥15–20 years
- Internal temperature: up to 1300°C
- Insulation material: zircon-containing refractory cotton (rated 1600°C)
- Furnace dimensions (W × H × D): 3000 mm × 3000 mm × 1500 mm
- Frame material: Q235-A structural steel
- Refractory brick: maximum 1750°C; long-term 1600°C
- Protective coating: three-layer anti-corrosion coating
- Foundation load: ≥750 kg/m²
- Required space: ≥150 m²; minimum ceiling height ≥5.5 m
