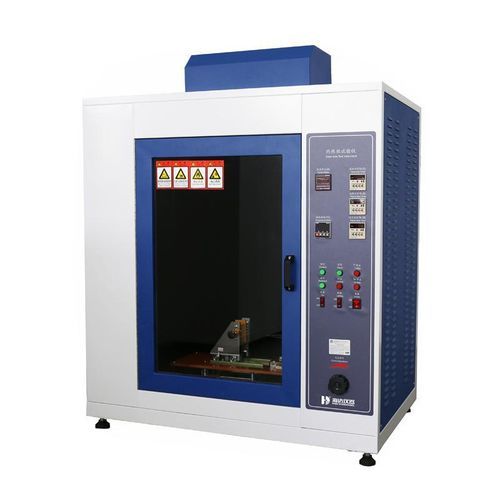

Fire reaction testing machine 6001-HD

flammabilityfully-automaticmotorized

Product Description
The 6001-HD Glow-wire Test Chamber reproduces short-term thermal stress from a glowing element, overloaded resistor or similar ignition source to assess fire-hazard risk of electrical and electronic products, plastic parts of household appliances and non-metallic insulating materials (e.g. switch enclosures, relay sockets). The chamber is designed for repeatable, standards-based testing with controlled observation and recordkeeping.

Applicable Standards
IEC 60695-2-10 / -11 / -12 / -13, IEC 60884-1, GB 2099.1, IEC 60335-1, GB 4706.1, VDE 0620-1, UL 60065, GB/T 5169.10 / .11 / .12 / .13, IEC 60950, GB 4943-2022

Product Features

• Fully automated control system with motorised sample carriage: moves the sample to the glow-wire for the preset glow duration and returns automatically.
• Chamber with black background and glass observation door for clear visual inspection.
• Integrated exhaust system and interior lighting for safe observation and fume extraction.
• Digital displays for time and temperature; records ignition time (Ta), flame persistence (Ti) and extinction time (Te).
• Adjustable glow-wire temperature up to 1000 °C with Ø1 mm Ni-Cr K-type thermocouple measurement.

Commercial Advantages

• Established supplier network and documented quality-control procedures throughout production.
• Competitive pricing based on market-aware sourcing.
• Dedicated QC team performing inspections during production and pre-shipment with AQL standards.
• Industrial design focused on usability and service access for laboratory environments.

Technical Specifications

• Model: 6001-HD
• Chamber Volume: >=0.5 m³ with glass observation door
• Chamber Illumination: < 20 LUX
• Glow-wire Temperature Range: ambient +10 °C to 1000 °C (measured with Ø1 mm Ni–Cr K-type thermocouple)
• Applied Force: 0.95 ± 0.10 N, insertion depth limit 7.0 mm ± 0.5 mm
• Glow-wire Material: Ni–Cr alloy (>77% Ni / 20±1% Cr), pre-bend diameter 4.0 ± 0.07 mm; other dimensions per standard tolerances
• Timer: 0 to 99 min 99 s, resolution 0.01 s; records Ta, Ti, Te
• Wooden Board: white pine, thickness >10 mm, positioned 200 ± 5 mm below the sample contact point
• Overall Dimensions (L×W×H): approx. 1015 × 650 × 1300 mm (including casters)
• Power Supply: AC 220 V, 50 Hz, 1 kVA
• Key Features: automated sample carriage, black interior, exhaust and lighting, digital time and temperature display
