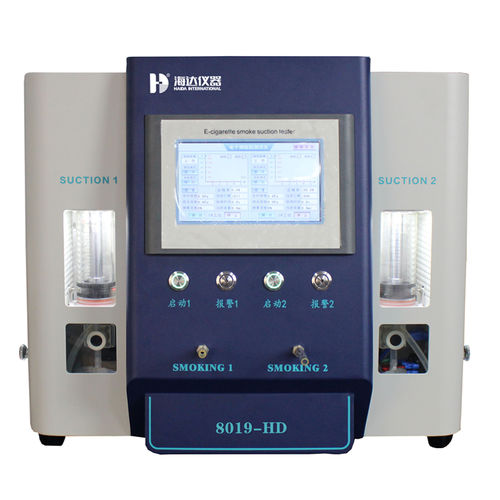

Resistance test machine 8019-HD

filtrationbreathing simulationautomatic

Suction Resistance Test Machine is used for testing electronic cigarette suction resistance. It suits for electronic cigarette production quality control and inspection. The machine simulates a human to inhale a fixed flow rate 17.5ml/s, then a certain vacuum pressure will be generated in the electronic cigarette, and this pressure is the suction resistance. Product Specifications： Control system - Touch screen Suction mode - Sine wave/trapezoidal wave Suction speed - 0.1~60ml/s can be set Suction volume - 1~100ml (accuracy ± 0.1%) Each puff interval - 0.1~999 seconds can be set Suction interval - 0.1~999 seconds can be set Puff No. - 1~999999 can be set Data storage - Can save 1000 group data and export to usb, use usb could save data directly. Other function - Could set upper and lower limit parameters to automatically judge whether the product is qualified or not. Negative pressure sensor - 0~ -3000PA; 0.2％FS Alarm function - If product is unqualified, system will alarm. Product dimension - 550*430*480mm Power supply - AC220V, 50Hz
