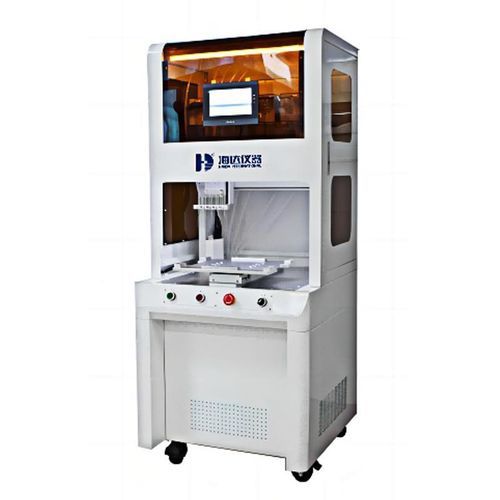

Automatic filling machine 8047-HD

for cartridgesfor liquid productsliquids

Product Overview
The 8047-HD is an automatic vape cartridge filling machine engineered for precision dosing of oil-based e-liquids. It combines stepper motor and PLC control with a metering pump to provide accurate volumetric filling and programmatic tray indexing for consistent head positioning and fast operation.

Main Advantages

• High-precision dosing: metering pump with ±0.02 mm filling accuracy and adjustable filling time (0.1–3 s)
• Five filling heads to increase throughput (100–200 pcs/min)
• Hygienic construction: 316 stainless steel and food-grade contact accessories
• Flexible production: programmable PLC, X/Y/Z repeatability and adjustable filling parameters

Technical Specifications

• Model: 8047-HD
• Number of filling heads: 5
• Filling capacity: 0.1–10 mL
• Filling accuracy: ±0.02 mm
• Filling time: 0.1–3 s (adjustable)
• X/Y/Z repetition accuracy: ±0.02 mm
• Working principle: Pneumatic oiling
• Material: 316 stainless steel
• Accessories: Food-grade
• Filling range (X/Y/Z): 300/300/100 mm
• Dimensions (L×W×H): 640×750×1150 mm
• Throughput: 100–200 pcs/min
• Weight: approx. 150 kg
• Power: AC220 V, 50 Hz, 1.5 kW

Recommended Applications

• Filling of vape cartridges, atomizers, e-liquid and CBD cartridges
• Suitable for manufacturers, contract fillers and R&D laboratories

Compliance & Maintenance
All product-contact parts are stainless steel or food-grade materials to facilitate cleaning. Routine maintenance and available spare parts support continuous production and minimise downtime.
