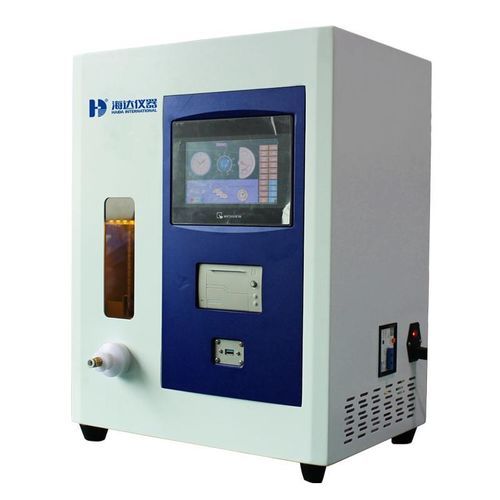

Resistance testing machine 8018-HD

automatedsmokefor cigarettes

Product overview
The 8018-HD smoke concentration tester is a laboratory/production-line device for evaluating electronic cigarette emissions. It uses a cylinder-plunger inhalation mechanism and allows configuration of puff volume, duration, interval and count to determine conformity of e-cigarette samples. Data output options include USB storage and an optional mini printer.

Key features

• Cylinder-plunger inhalation mechanism for repeatable puffs.
• Adjustable smoke volume: 1–100 ml.
• Adjustable puff duration: 1–9.9 seconds.
• Configurable interval between puffs: 1–999 seconds and puff count up to 99,999.
• Single testing station suitable for R&D and QC sampling.
• Data export via USB and optional mini printer for on-site records.

Product specifications

• Model: 8018-HD
• Station: 1 Station
• Smoke volume: 1~100 ml
• Duration time: 1–9.9 seconds
• Interval of each puff: 1–999 seconds
• Puff number: 1–99,999
• Mini printer: optional, prints test data
• USB: data storage via USB
• Test items: suction resistance, puff count, smoke concentration
• Product dimension: approx. 560×450×730 mm
• Power: AC 220 V

Applications

• Manufacturer quality control and production sampling.
• R&D laboratories for e-cigarette and aerosol research.
• Third-party testing and conformity assessment bodies.

Advantages

• Repeatable, configurable test parameters to match regulatory and in-house protocols.
• Compact footprint for bench-top installation in labs or on production lines.
• Traceable digital output (USB) and printed records for quality documentation.
• Simple controls and clear parameter ranges to reduce setup time.

Technical specifications

• Model: 8018-HD
• Station: 1 Station
• Smoke volume: 1~100 ml
• Duration time: 1–9.9 seconds
• Interval of each puff: 1–999 seconds
• Puff number: 1–99,999
• Mini printer: optional
• USB: data storage
• Test projects: suction resistance; puff number; smoke concentration
• Product dimension: approx. 560×450×730 mm
• Power: AC 220 V
