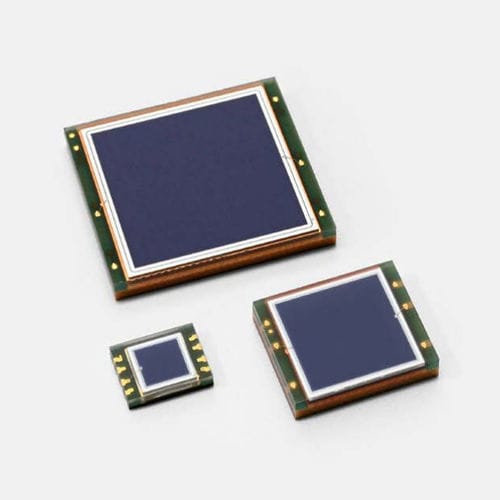

The S16008 series is a surface mount type Si photodiode with high sensitivity in the visible to near infrared region. This provides higher sensitivity than the previous S2387 series.
Features
-High sensitivity in visible to near infrared region
-Low dark current
-Superior linearity
-Compatible with lead-free solder reflow
Specifications
• Photosensitive area : 5.8 × 5.8 mm
• Number of elements : 1
• Package : Glass epoxy
• Package category : Surface mount type
• Cooling : Non-cooled
• Spectral response range : 380 to 1100 nm
• Peak sensitivity wavelength (typ.) : 960 nm
• Photosensitivity (typ.) : 0.64 A/W
• Dark current (max.) : 50 pA
• Rise time (typ.) : 9.0 μs
• Terminal capacitance (typ.) : 4000 pF
• Noise equivalent power (typ.) : 2.0 × 10-15 W/Hz1/2
• Measurement condition : Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=10 mV, Rise time: VR=0 V, RL=1 kΩ, 10 to 90%, Terminal capacitance: VR=0 V, f=10 kHz, Noise equivalent power: VR=0 V, λ=λp, unless otherwise noted
