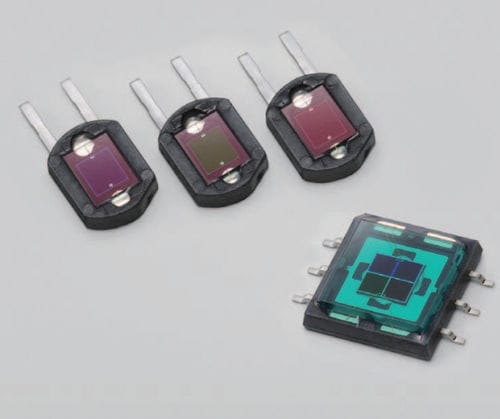

RGB color sensor S6428-01

infraredrectangular

The S6428-01 is a color sensor designed to respectively detect monochromatic colors of blue (λp=460 nm). Features -Plastic package (6 × 8 mm) -Spectral response range: 400 to 540 nm (λp=460 nm) -Insensitive to near IR range -High sensitivity: 0.22 A/W Typ. (λ=λp) -Low dark current Specifications Package material - Plastic Photosensitive area - 2.8 × 2.4 mm Spectral response range - 400 to 540 nm Dark current (max.) - 0.02 nA Terminal capacitance - 200 pF Rise time - 0.5 μs Note - For blue PIO Measurement Conditions(Product unit) - Typ. Ta=25 deg.C, unless otherwise noted
