Near-infrared photodetector S15534

NIRindustrialfast

Overview

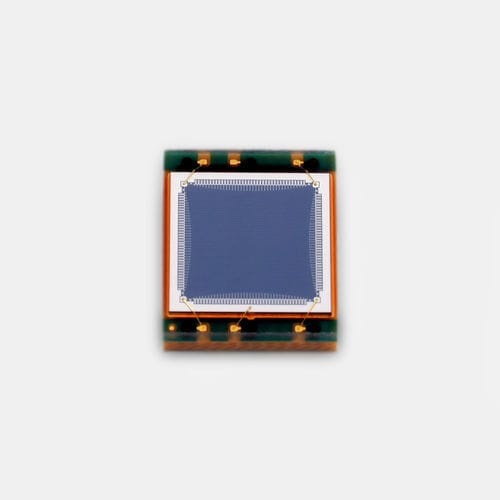

The S15534 is a surface-mount, two-dimensional position-sensitive detector (PSD) in a COB configuration, designed for precise position detection in compact assemblies. It offers improved size compared with the conventional S5990-01 while maintaining high position detectability suitable for industrial sensing and optical alignment tasks.

Key features

• COB type
• Excellent position detectability
• Compact package: 7.21 × 5.96 × 1.5t mm
• Compatible with lead-free solder reflow

Specifications (table)
Photosensitive area: 4 × 4 mm
Package: Glass epoxy
Peak sensitivity wavelength (typ.): 980 nm
Photosensitivity (typ.): 0.6 A/W
Package category: Surface mount type
Spectral response range: 380 to 1100 nm
Dark current (max.): 10 nA
Rise time (typ.): 1 μs
Terminal capacitance (typ.): 70 pF
Interelectrode resistance (typ.): 7 kΩ
Measurement condition: Typ. Ta=25 ℃, unless otherwise noted

Additional information
Datasheet is available for this product. Related selection guides and technical notes on PSDs and surface-mount handling are provided in the product documentation to support integration and design-in.

Technical specifications

• Photosensitive area: 4 × 4 mm
• Package: Glass epoxy
• Peak sensitivity wavelength (typ.): 980 nm
• Photosensitivity (typ.): 0.6 A/W
• Package category: Surface mount type
• Spectral response range: 380 to 1100 nm
• Dark current (max.): 10 nA
• Rise time (typ.): 1 μs
• Terminal capacitance (typ.): 70 pF
• Interelectrode resistance (typ.): 7 kΩ
• Measurement condition: Typ. Ta=25 ℃
