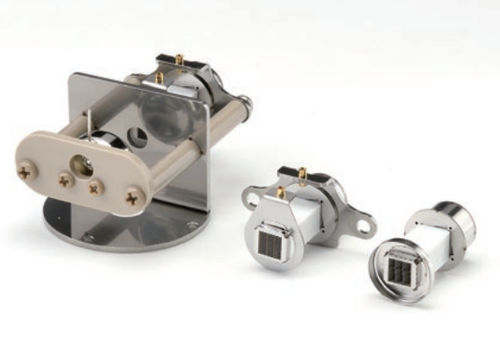

Electron multiplier R14747-80

Ceramic channel electron multiplier(CERARION) with conversion dynode. The detector structure is made of lead free ceramic. Input aperture size : 11 mm dia., Operating vacuum level : 0.01 Pa Features Composed of Lead-free substances Can measure high mass ions by using conversion dynode Can measure both polarity ions by fast polarity switching of the voltage applied to the conversion dynode Applications Mass spectrometers (Ion trap MS, QMS, etc.) Specifications Dynode Stages - 1 Dynode Structure - Continues Input Aperture Diameter - Dia. 11 mm Supply Voltage - 2000 V Gain Typ. - 1.0 x 107 Rise Time Typ. - 2.1 ns [Max. Rating] Anode to First Dynode Voltage - 3600 V [Max. Rating] Operationg Gain - 1.0 x 108 [Max. Rating] Average Anode Current - 6 μA [Max. Rating] Operating Vacuum Level - 0.01 Pa
