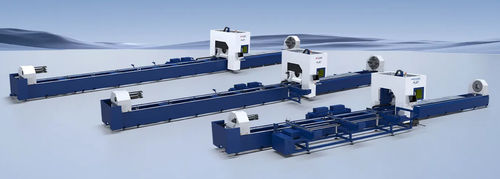

High-speed pipe cutting and beveling machine PLT series

stationary

Overview
The PLT series fiber laser tube cutting machine is designed for cutting carbon steel, stainless steel, copper and aluminum alloy tubes (round, square, oval and special-shaped), profiles and other metal sections. It delivers high speed, precision and efficiency for industrial tube processing applications.

Key Features

• Horizontal bed structure: Horizontal layout with high-precision linear guide rails for smooth transmission and strong load capacity.
• Precision chucks: Precision transmission system to prevent contamination and maintain transmission accuracy. Triple-chuck arrangement with full-stroke capability on the 2nd and 3rd chucks to avoid gear changes between tube sizes.
• Floating support: Support units adapt to the tube rotation radius. Independent servo control provides fast response and high load capacity, ensuring stable positioning and improved machining accuracy.
• Floating support system (unloading): Fixed unloading with buffer and tilt-slide function, combined with vision-guided recognition for accurate identification and rapid sorting. 6 m floating unloading system with high load capacity handles tubes over 300 kg.
• Zero scrap: Cutting head can traverse the center chuck and cut in the opposite direction to achieve true zero scrap and maximize material utilization.

Optional Configurations

• Bevel-cut: Groove cutting head with independent intellectual property rights, designed for groove cutting and seamless splicing—suitable for welding requirements of steel structures and large pipes.
• Semi-automatic: Loading mechanism accepts rows of tubes and automatically completes loading, feeding and single-tube positioning to the chuck.
• Fully-automatic: Silo stacking for tube bundles with automatic loading, feeding and single-tube positioning to the chuck.

Cutting Samples
Representative cutting samples illustrate precise edge quality, capability for complex geometries and consistent results across different tube materials and sections.

Technical Specifications

• Model: PL2T-06
  Round Tube Diameter: φ20-240 mm
  Square Tube Side Length: □20-240 mm
  Positioning accuracy (X/Y): ±0.05 mm/1000 mm
  Repeatability (X/Y): ±0.05 mm
  Max. Positioning Speed (X/Y): 100 m/min
  Max. Positioning Speed (A/B/C): 100 rpm
  Max. Loading Length: 6200 mm
  Unloading length: 0-6000 mm
  Max. Tube Weight: 300 kg
• Model: PL2T-09
  Round Tube Diameter: φ20-240 mm
  Square Tube Side Length: □20-240 mm
  Positioning accuracy (X/Y): ±0.05 mm/1000 mm
  Repeatability (X/Y): ±0.05 mm
  Max. Positioning Speed (X/Y): 100 m/min
  Max. Positioning Speed (A/B/C): 100 rpm
  Max. Loading Length: 9200 mm
  Unloading length: 0-9000 mm
  Max. Tube Weight: 300 kg
• Model: PL3T-06
  Round Tube Diameter: φ20-360 mm
  Square Tube Side Length: □20-350 mm
  Positioning accuracy (X/Y): ±0.05 mm/1000 mm
  Repeatability (X/Y): ±0.05 mm
  Max. Positioning Speed (X/Y): 80 m/min
  Max. Positioning Speed (A/B/C): 80 rpm
  Max. Loading Length: 6200 mm
  Unloading length: 0-6000 mm
  Max. Tube Weight: 500 kg
• Model: PL3T-09
  Round Tube Diameter: φ20-360 mm
  Square Tube Side Length: □20-350 mm
  Positioning accuracy (X/Y): ±0.05 mm/1000 mm
  Repeatability (X/Y): ±0.05 mm
  Max. Positioning Speed (X/Y): 80 m/min
  Max. Positioning Speed (A/B/C): 80 rpm
  Max. Loading Length: 9200 mm
  Unloading length: 0-9000 mm
  Max. Tube Weight: 600 kg
• Model: PL3T-12
  Round Tube Diameter: φ20-360 mm
  Square Tube Side Length: □20-350 mm
  Positioning accuracy (X/Y): ±0.05 mm/1000 mm
  Repeatability (X/Y): ±0.05 mm
  Max. Positioning Speed (X/Y): 80 m/min
  Max. Positioning Speed (A/B/C): 80 rpm
  Max. Loading Length: 12200 mm
  Unloading length: 0-12000 mm
  Max. Tube Weight: 850 kg
