Stationary pipe cutting and beveling machine TD series

motorizedhigh-speed

Overview

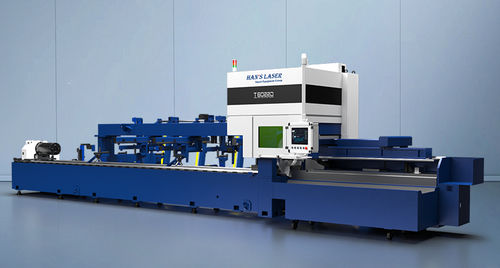

The TD Series by Han's Laser Smart Equipment Group (Han's Laser) is a high-power CNC laser tube cutting machine designed to meet international industrial standards. Equipped with IPG/Han's laser sources and high-precision transmission components (rack-and-pinion, linear guides), it processes carbon steel, stainless steel and aluminum alloy tubes (round, square, oval) with high speed, accuracy and industrial cost efficiency, intended for metal pipe fabrication applications.

Key Features

• Modular design, flexible combination: modular loading and unloading structures allow configurable layouts to match production needs.
• Horizontal welded bed: horizontal structure with precision gear rack and linear guide rails for stable transmission; the lathe bed is stress-relieved welded, annealed, rough machined, vibration-aged and finish machined to ensure rigidity, precision and long-term stability.
• Han's cutting head: capacitive sensor for high-precision detection and stable response.
• Drive system: X/Y/Z linear axes plus A/B rotary axes driven by high-torque servo motors for high-speed, precise motion control.
• Four-jaw self-centering pneumatic chuck: four-jaw roller pneumatic chuck with integrated self-centering clamping mechanism; welded plate construction with stress relief and precision finishing for high rigidity and excellent dynamic performance.
• Internal negative-pressure dedusting: negative-pressure suction inside the pipe for clean, environmentally friendly operation.
• Professional nesting software:
  • Includes cutting modules for intersecting-line, groove, hole, pattern and multi-angle cutting (WYSIWYG).
  • Generates CAM files and CNC cutting programs for round and square tube cutting.
  • Supports a variety of multi-axis CNC laser cutting machines.
  • Software support: Windows 98/2000/NT/Vista OS with Chinese and English interfaces (legacy OS support noted).

Optional Modules

• Semi-automatic feeding: front-mounted module for batch placement of pipes on shelves to reduce raw material preparation time.
• Fully automatic feeding: rear-mounted module with raw material stacking rack for automated pipe supply, improving loading speed and production efficiency.

Cutting Capacity (summary)
Models: T6016D / T6022D / T10025D / T6033D / T12033D / T12035D

Technical Data Sample (for reference only)
Model | Laser Source Power | Max. Machining Range | Cutting Speed | Max. Weight of Single Tube | Unload Tube Length (Custom) | Positioning Speed
T6016D / T6022D / T10025D / T6033D / T12033D / T12035D | 2000W / 3000W / 4000W / 6000W (optional) | φ15-220 mm / φ15-150 mm / φ15-254 mm / φ15-200 mm / φ11-330 mm / φ10-230 mm | 100 rpm | 100 kg / 150 kg / 200 kg | 0-2000 mm | 100 m/min

Technical specifications

• Brand: Han's Laser Smart Equipment Group (Han's Laser)
• Series / Model Name: TD Series
• Laser source options: IPG / Han's laser sources; available powers: 2000W, 3000W, 4000W, 6000W (optional)
• Supported tube diameters (by model): φ10–φ330 mm (model-dependent ranges listed above)
• Rotary cutting speed: up to 100 rpm
• Maximum single-tube weight: up to 200 kg (model-dependent)
• Unload tube length: customizable up to 0–2000 mm
• Positioning speed: up to 100 m/min
• Axes & motion: X/Y/Z linear axes plus A/B rotary axes with high-torque servo motors
• Chucking: four-jaw self-centering pneumatic chuck
• Dust control: negative-pressure interior pipe dedusting
• Structure: horizontal welded lathe bed with stress relief and vibration aging for long-term stability
• Software: professional nesting/CAM generation for round & square tubes; multi-axis CNC support; legacy Windows OS interfaces available
