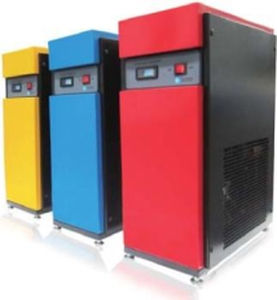

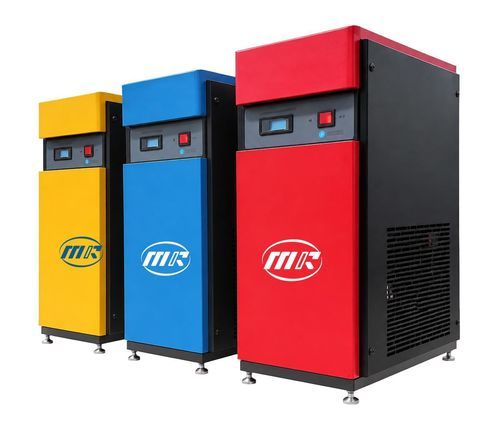

Refrigerated compressed air dryer BD series

high-performancehigh-temperaturecompact

Product Overview
BD series refrigerated air dryers cool compressed air to condense and remove water vapor. The series comprises two distinct subseries — BDL and BDH — whose models and specifications are separate from the KD ranges.

How It Works & Product Features

• BDL maximum inlet temperature: ≤55 °C.
• BDH maximum inlet temperature: ≤80 °C.
• Working pressure range: 2–16 bar.
• Designed for continuous compressed-air pretreatment within the published ranges.

Main Technical Specifications

• Rated flow range: 0.7–11.5 m³/min.
• Working pressure: 2–16 bar.
• Subseries: BDL (max inlet ≤55 °C) and BDH (max inlet ≤80 °C).
• Standard power supply: 220 V / 50 Hz.
• Connection sizes: G1/2 up to G2 depending on model.
• Power consumption range: 0.45–2.30 kW depending on model.

Models & Specifications — BDL Subseries

• BDL-5F | 0.7 m³/min | 25 CFM | 2–16 bar | ≤55 °C | 0.45 kW | G1/2 | 220 V/50 Hz | 450 × 250 × 580 mm | 30 kg
• BDL-10F | 1.6 m³/min | 56 CFM | 2–16 bar | ≤55 °C | 0.47 kW | G1 | 220 V/50 Hz | 450 × 250 × 580 mm | 40 kg
• BDL-20F | 2.6 m³/min | 92 CFM | 2–16 bar | ≤55 °C | 0.85 kW | G1 | 220 V/50 Hz | 550 × 300 × 775 mm | 45 kg
• BDL-30F | 3.8 m³/min | 134 CFM | 2–16 bar | ≤55 °C | 1.04 kW | G1 | 220 V/50 Hz | 550 × 300 × 775 mm | 55 kg
• BDL-50F | 6.0 m³/min | 212 CFM | 2–16 bar | ≤55 °C | 1.65 kW | G1 | 220 V/50 Hz | 820 × 360 × 825 mm | 70 kg
• BDL-60F | 7.0 m³/min | 247 CFM | 2–16 bar | ≤55 °C | 1.65 kW | G1-1/2 | 220 V/50 Hz | 820 × 360 × 825 mm | 75 kg
• BDL-75F | 8.5 m³/min | 300 CFM | 2–16 bar | ≤55 °C | 1.80 kW | G1-1/2 | 220 V/50 Hz | 880 × 360 × 825 mm | 80 kg
• BDL-100F | 11.5 m³/min | 406 CFM | 2–16 bar | ≤55 °C | 2.05 kW | G2 | 220 V/50 Hz | 1050 × 480 × 1200 mm | 95 kg

Models & Specifications — BDH Subseries

• BDH-5F | 0.7 m³/min | 25 CFM | 2–16 bar | ≤80 °C | 0.47 kW | G1/2 | 220 V/50 Hz | 650 × 300 × 775 mm | 35 kg
• BDH-10F | 1.6 m³/min | 56 CFM | 2–16 bar | ≤80 °C | 0.53 kW | G1 | 220 V/50 Hz | 650 × 300 × 775 mm | 45 kg
• BDH-20F | 2.6 m³/min | 92 CFM | 2–16 bar | ≤80 °C | 0.95 kW | G1 | 220 V/50 Hz | 700 × 360 × 900 mm | 50 kg
• BDH-30F | 3.8 m³/min | 134 CFM | 2–16 bar | ≤80 °C | 1.16 kW | G1 | 220 V/50 Hz | 700 × 360 × 900 mm | 65 kg
• BDH-50F | 6.0 m³/min | 212 CFM | 2–16 bar | ≤80 °C | 1.65 kW | G1 | 220 V/50 Hz | 820 × 360 × 825 mm | 80 kg
• BDH-60F | 7.0 m³/min | 247 CFM | 2–16 bar | ≤80 °C | 1.65 kW | G1-1/2 | 220 V/50 Hz | 820 × 360 × 825 mm | 85 kg
• BDH-75F | 8.5 m³/min | 300 CFM | 2–16 bar | ≤80 °C | 1.80 kW | G1-1/2 | 220 V/50 Hz | 880 × 360 × 825 mm | 90 kg
• BDH-100F | 11.5 m³/min | 406 CFM | 2–16 bar | ≤80 °C | 2.30 kW | G2 | 220 V/50 Hz | 1050 × 480 × 1150 mm | 110 kg

Applications
For compressed-air pretreatment within the published flow, pressure and inlet-temperature ranges; suitable for industrial compressed-air systems requiring dew-point control and condensate removal prior to downstream equipment.

Technical characteristics / Specifications

• Rated flow range: 0.7–11.5 m³/min.
• Working pressure range: 2–16 bar.
• Subseries: BDL (max inlet temperature ≤55 °C) and BDH (max inlet temperature ≤80 °C).
• Standard power supply: 220 V / 50 Hz.
• Connection sizes: G1/2 to G2 depending on model.
• Power consumption range (per model): 0.45–2.30 kW.
