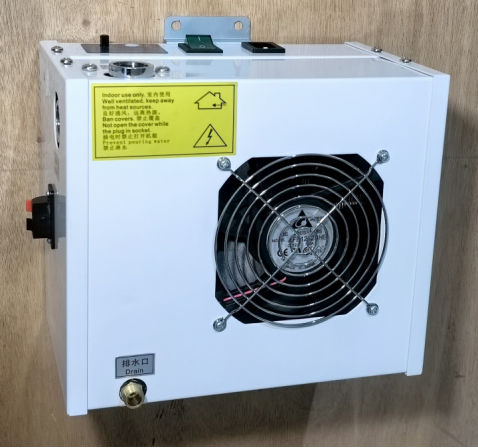

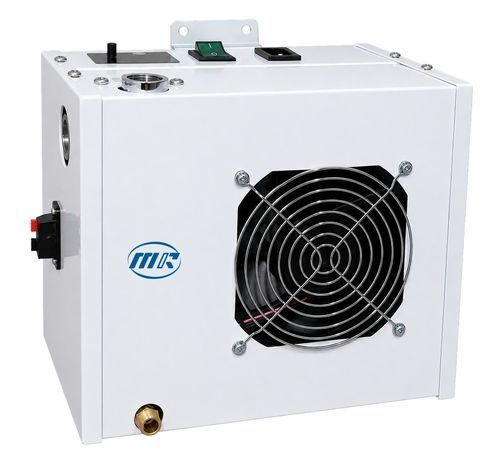

Refrigerated compressed air dryer SSD3

compact

Product Overview
Compact pre-treatment air dryer using thermoelectric cooling to lower compressed-air temperature so moisture condenses and is removed via an electronic timed drain. Includes integrated filtration; designed for indoor auxiliary compressed-air circuits with limited installation space. Supports desktop or wall-mounted installation.

How It Works & Product Features

• Thermoelectric cooling to reduce air temperature and condense moisture.
• Integrated filtration for particles and condensed liquid.
• Electronic timed drainage for automated condensate removal.
• Compact footprint suitable for desktop or wall-mounted installation.

Main Technical Specifications
Rated Flow: 420 L/min
Working Pressure: <0.8 MPa
Inlet Temperature: ≤35 °C
Power Consumption: 350 W
Dimensions: 276 × 180 × 200 mm
Weight: 5.5 kg
Inlet: PT1/2
Outlet: PT1/2
Drain: G1/4
Protection Rating: IP20
Operating Environment: Indoor
Mounting: Desktop or wall-mounted
Drainage: Electronic timed drainage

Models & Specifications
Model | Rated Flow (L/min) | Working Pressure | Inlet Temperature | Power Consumption (W) | Dimensions L×W×H (mm) | Weight (kg) | Inlet | Outlet | Drain | Protection Rating | Operating Environment | Mounting | Drainage
SSD3 | 420 | <0.8 MPa | ≤35 °C | 350 | 276 × 180 × 200 | 5.5 | PT1/2 | PT1/2 | G1/4 | IP20 | Indoor | Desktop or wall-mounted | Electronic timed drainage

Applications
Suitable for auxiliary pneumatic circuits in semiconductor equipment, automation systems, small instruments and other compressed-air duties where installation space is limited.

Technical Specifications

• Rated Flow: 420 L/min
• Working Pressure: <0.8 MPa
• Inlet Temperature: ≤35 °C
• Power Consumption: 350 W
• Dimensions: 276 × 180 × 200 mm
• Weight: 5.5 kg
• Inlet: PT1/2
• Outlet: PT1/2
• Drain: G1/4
• Protection Rating: IP20
• Operating Environment: Indoor
• Mounting: Desktop or wall-mounted
• Drainage: Electronic timed drainage
• Thermoelectric cooling
• Integrated filtration
