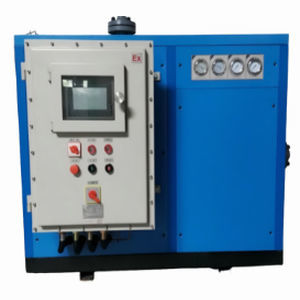

Refrigerated gas dryer

for gasfor industrial applicationsfor gas drying

Product Overview
Refrigerated dryer designed to remove condensate from biogas streams by reducing gas temperature using direct or indirect cooling. Materials, explosion-protection arrangement, installation location and scope of supply are adapted to gas composition and site conditions.

How It Works & Product Features

• Selectable direct- or indirect-cooling configuration.
• Compatible with biogas, natural gas and coalbed methane.
• Explosion-proof arrangement verified per project (BT4 / CT4).
• Pressure dew point control: 2–3 °C (indirect cooling); 3–10 °C (direct cooling).
• Material options: stainless steel S304 or S316 according to corrosion and gas chemistry.
• Wide flow range: 200–3000 Nm³/h; fan and compressor pressure ratings suitable for gas-treating applications.

Main Technical Specifications
Equipment Type: Direct Cooling / Indirect Cooling
Fan Inlet Pressure: 3.5–5 kPa
Fan Outlet Pressure: 25–40 kPa
Compressor Outlet Pressure: 7–16 bar
Gas Flow Rate: 200–3000 Nm³/h
Applicable Gas Medium: Biogas, natural gas and coalbed methane
Pressure Dew Point: 2–3 °C (indirect cooling); 3–10 °C (direct cooling)
Material Options: S304 / S316
Explosion-Proof Configuration: BT4 / CT4

Applications
Designed for condensate removal in biogas upgrading, natural-gas treatment and coalbed-methane processing. Suitable for biogas plants and gas treatment stations where explosion protection and reliable dehydration are required.

Materials & Explosion Protection

• Construction materials: S304 or S316 stainless steel selected based on corrosion risk and gas composition.
• Explosion-protection configurations: BT4 / CT4; final specification confirmed during engineering to meet site-specific hazardous-area classification.
