- Electro-hydraulic drilling unit
- HANN KUEN MACHINERY

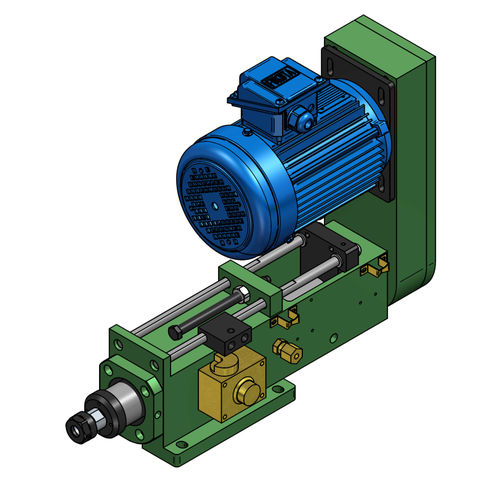

Electro-hydraulic drilling unit SD5-ER20self-feedmulti-spindle
Add to favorites
Compare this product
Characteristics
- Drive type
- electro-hydraulic
- Other characteristics
- self-feed, multi-spindle
- Rotational speed
Max.: 5,000 rpm
(31,415.9 rad.min-1)Min.: 500 rpm
(3,141.6 rad.min-1)- Stroke
Max.: 85 mm
(3.35 in)Min.: 1 mm
(0.04 in)- Torque
Max.: 50 Nm
(36.88 ft.lb)Min.: 10 Nm
(7.38 ft.lb)
Description
SD5 is an automated selfeeder drilling head unit with a fluid valve for hydraulic feeding rate control.
Maximum drilling capacity up to 13mm (S45C)
Total Stroke : 85 [mm]
Adjustable Feed Stroke: 80 [mm]
Max. Drilling Capacity : 13 [mm]
Spindle Taper : ER20 / JT6
Motor Power : 0.75kw or 1.5kw
Speed Range at 50Hz : 500 - 5000 [min-1]
Max. Allow Speed : 5000 [min-1]
Operating Pressure : 20 - 25 [kg/cm2]
Belt Drive : Timing
AC Induction Motor protection IP 54
OMRON proximity switch sensors and stand are included
