- Electro-hydraulic drilling unit
- HANN KUEN MACHINERY

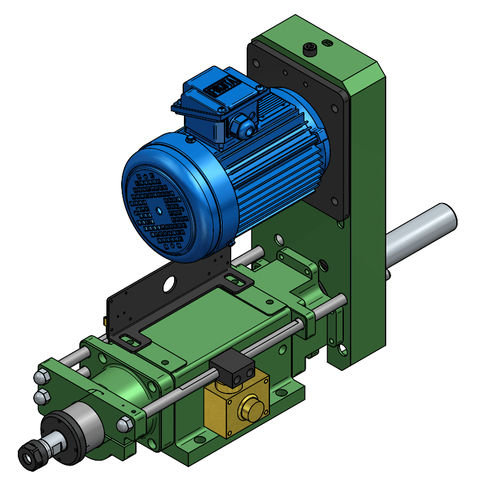

Electro-hydraulic drilling unit SD7-ER32self-feedmulti-spindle
Add to favorites
Compare this product
Characteristics
- Drive type
- electro-hydraulic
- Other characteristics
- self-feed, multi-spindle
- Rotational speed
Min.: 500 rpm
(3,141.6 rad.min-1)Max.: 2,500 rpm
(15,708 rad.min-1)- Stroke
Min.: 1 mm
(0.04 in)Max.: 130 mm
(5.12 in)- Torque
Min.: 10 Nm
(7.38 ft.lb)Max.: 150 Nm
(110.63 ft.lb)
Description
SD7 is an automated selfeeder drilling head unit with hydraulic fluid valve to control the feeding rate.
Maximum drilling capacity up to 20mm (S45C)
Total Stroke : 130 [mm]
Adjustable Feed Stroke: 130 [mm]
Max. Drilling Capacity : 20 [mm]
Spindle Taper : ER20 / ER25 / ER32 / JT6 / MT3
Motor Power : 1.5kw or 2.2kw
Speed Range at 50Hz : 500 - 2500 [min-1]
Max. Allow Speed : 2500 [min-1]
Operating Pressure : 25 - 35 [kg/cm2]
Belt Drive : Timing
AC Induction Motor protection IP 54
OMRON proximity switch sensors and stand are included
Catalogs
No catalogs are available for this product.
See all of HANN KUEN MACHINERY‘s catalogsOther HANN KUEN MACHINERY products
SELF-FEED DRILLING UNIT
