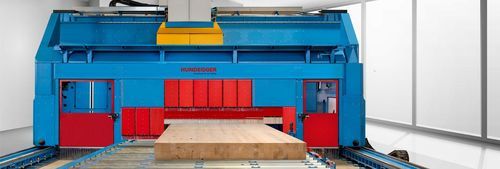

CNC cutting and machining center PBA-Industry

multifunctionwooden

Overview
The PBA-Industry panel processing machine is built for cutting and machining large engineered timber panels (CLT/BSP) with maximum dimensions up to 16.50 m length, 3.66 m width and 400 mm thickness. The machine is modular and can be equipped or retrofitted with specific units to meet production requirements.

Highlights

• 5-axis gantry system for high-precision, high-throughput machining
• 5-axis head enabling processing on five sides
• 63 kW spindle motor for heavy-duty operations
• Tool changer with capacity for up to 35 tools
• Machine enclosure with integrated ducting for fine dust extraction
• Handles large panels up to 3.66 m width and 400 mm thickness
• Free software updates and near 24/7 service support

Processing capabilities
The PBA-Industry machines a wide range of timber materials: solid timber, glued beams, cross-laminated timber (CLT), multi-layer panels and sandwich panels. Workpieces usually do not require clamping; with appropriate fixtures parts can be positioned arbitrarily. Position detection is performed via laser pointer and camera and displayed to the operator. Optional fully automatic part measurement is available for curved or randomly placed parts.

Speed & Variants

• Maximum traversing speeds: X ≈ 60 m/min, Y ≈ 60 m/min, Z ≈ 30 m/min
• Maximum raw panel dimensions handled: Length 16,500 mm, Width 3,660 mm, Height 400 mm
• Processing height (lower edge of part): 850 mm

CAMBIUM® software
CAMBIUM® is Hundegger's integrated 3D production and machine control software developed for timber construction. It simplifies job preparation, performs automated calculations and optimizations, and connects to standard IT, infeed and storage systems.

• Single platform for Hundegger machinery
• Automated calculation and optimization of parts and nests
• Customizable workflows and clear reporting
• Interfaces for integration with infeed and storage systems
• Regular free updates

Service & Modularity
The PBA-Industry is modular: a wide range of main units and technical options allow tailoring the machine to specific production needs and enable retrofits. Comprehensive service and training packages are available to maximize uptime.

Technical specifications

• Model: PBA-Industry
• Manufacturer: Hundegger
• Max. panel thickness: 400 mm
• Max. panel width: 3,660 mm
• Max. panel length: 16,500 mm
• Processing height (lower edge): 850 mm
• Spindle motor: 63 kW
• Axes: 5-axis gantry; 5-axis head for 5-side processing
• Traversing speeds: X ≈ 60 m/min, Y ≈ 60 m/min, Z ≈ 30 m/min
• Tool changer capacity: up to 35 tools
• Dust extraction: integrated ducting in machine enclosure
• Materials processed: solid wood, glued beams, CLT, multi-layer and sandwich panels
• Automatic part detection: laser pointer + camera; optional fully automatic part measurement
• Software: CAMBIUM® (3D production & control, free updates)
• Modularity: numerous units and options; retrofit-capable
