5-axis machining machine UFA-Industry

verticalfor woodmilling

Overview
The UFA-Industry panel processing machine is designed to format and machine panels on the end face and long sides and to produce rebates, grooves and openings on the underside. Parts fixed on a chain conveyor are processed from below or from all four sides. The machine is modular and configured to specific production requirements; units and options can be retrofitted at any time.

Highlights

• Designed for CLT elements with design thickness up to Z = 37 cm, maximum width Y = 360 cm and length X = 16.5 m.
• Capable of machining from the underside and on all four sides depending on configuration.
• Integrated CAMBIUM® production and control software for process continuity and machine-to-machine integration.

Main units and tool units

• Trimming unit: up to 22 kW, machining possible on both long sides.
• Milling units: up to 43 kW with spindle speeds up to 12,000 rpm.

Process chain

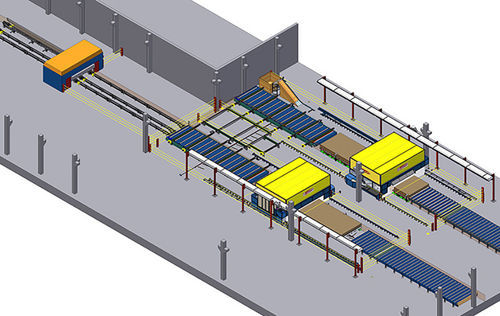

The UFA-Industry can act as a central machining centre in a production line. It can feed and coordinate with up to two PBA-series panel machines using panels already formatted and machined from below, eliminating time-consuming part turning and reducing handling time.

Processing examples
Formatting, trimming, grooving, rebate and underside machining for large CLT elements. In combined operation with PBA-series machines, panels up to approx. 30 cm can be processed from below in optimized workflows; maximum capacities depend on selected aggregates and configuration.

Modular equipment & automation
The machine is modular and customizable with multiple units and automation options. Typical maximum traversing speeds: X-axis ≈ 60 m/min; Y-axis ≈ 60 m/min; Z-axes ≈ 30 m/min. Retrofit possibilities allow adaptation to evolving production needs.

Technical specifications

• Model name: UFA-Industry
• Manufacturer: Hundegger
• Application: Formatting and machining of CLT elements; operations from below and on all four sides
• Maximum panel thickness (design): up to Z = 37 cm (application-dependent; certain optimized workflows reference up to ~30 cm from below)
• Maximum panel width: Y = 360 cm
• Maximum panel length: X = 16.5 m
• Trimming unit power: up to 22 kW (machining on both long sides)
• Milling unit power: up to 43 kW; spindle speed up to 12,000 rpm
• Traversing speeds: X ≈ 60 m/min; Y ≈ 60 m/min; Z ≈ 30 m/min
• Conveyor/handling: chain conveyor for panel positioning; suitable as central machining centre with PBA integration
• Software: CAMBIUM® production and control software (in-house)
• Modularity: units and options can be retrofitted; wide range of technical options available
