Overview
The Hundegger PBA-X gantry system combines a modular machine concept with high‑performance drives to provide precise CNC processing for CLT and glulam components. With dedicated 5‑axis and 3‑axis units and CAMBIUM® multi-panel support, the PBA‑X processes panels and beams of varying sections in efficient production lots with reduced waste.

Versions

• Hundegger PBA-X 3100
• Hundegger PBA-X 3600
• Hundegger PBA-X 4600

Multi-machining
Intelligent multi‑machining enables integration of several machines into a continuous workflow, improving throughput and balancing tasks across stations.

Highlights

• Maximum processing dimensions (raw part): Length = dependent on rail length; Width = 3500 | 4000 | 5000 mm (by version); Height = 650 mm
• 5‑axis spindle unit 35 kW with continuous speed control 0–12,000 rpm for large low‑speed tools and high‑speed end mills
• 3‑axis milling and drilling units for flexible secondary operations
• TORNADO cleaning system (gantry‑mounted or stationary) for effective chip and dust removal
• High‑quality linear guides with sealed carriages for X/Y movements
• Fully automatic central lubrication system to reduce maintenance intervals

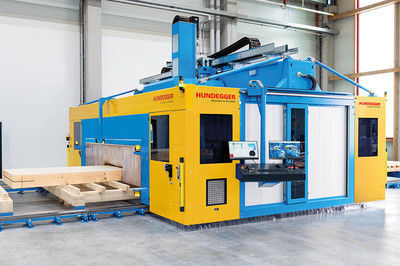

Machine cabin / Main Unit / Tooling
The gantry and tool carriers travel in X and Y on precision linear guides, ensuring a rigid connection between the tool frame and rail transport. Tool-change system with a basic magazine up to 50 tool slots; the 5‑axis unit machines all six faces with continuously adjustable spindle speed.

How you benefit

• Process components up to 5.0 m wide and 650 mm high
• Efficient execution of cuts, milling and drilling operations
• Customisable tool magazine and tool configuration
• Deep‑hole drilling on four component sides up to ±30°

Processing examples
Suitable for single‑station, multi‑station and pass‑through production concepts. The PBA‑X adapts to line layout and material flow requirements.

Options & Installation concepts
Configurable from compact single‑station to modular multi‑station tables or continuous pass‑through solutions. Numerous optional units extend functionality for specific production requirements.

CAMBIUM® software
CAMBIUM® is Hundegger’s 3D control and preparation platform. It supports office or machine‑side job preparation, automated calculations, nesting and continuous updates, and interfaces to storage and infeed systems.

CAMBIUM advantages

• Single software platform for Hundegger machines
• Complete production mapping and automated calculations
• Customisable, clearly formatted reports
• Standard IT interfaces for system integration

Automation / Smart dynamic processing tables
Processing tables are available as stationary systems with quick‑clamp movable supports, driven roller tables for automatic infeed/ejection, and vacuum tabletops that lift panels up to 400 mm. Smart vacuum pod lowering allows multiple machining operations in a single clamping.

Processing units & tooling examples
Available high‑performance units include: 5‑axis saw/spindle, 3‑axis milling units, deep‑hole drilling units, vacuum stamps, saw units and specialised tooling for CLT and glulam parts.

Technical specifications

• Model series: PBA‑X (3100 / 3600 / 4600)
• Maximum part width (raw part): 3500 mm (3100) | 4000 mm (3600) | 5000 mm (4600)
• Maximum part height: 650 mm
• Length: dependent on rail length (configurable)
• 5‑axis spindle power: 35 kW
• Spindle speed range: continuous 0–12,000 rpm
• 3‑axis milling and drilling units included as complementary units
• Tool magazine: basic magazine up to 50 tool slots (configurable)
• TORNADO cleaning system for chip and dust removal
• Deep‑hole drilling on 4 component sides up to ±30°
• Vacuum tabletop: panel lift up to 400 mm; intelligent pod lowering for multi‑part clamping
• Central automatic lubrication system
• CAMBIUM® software for job preparation, nesting, optimisation and machine control
• Installation concepts: single‑station, multi‑station (modular table), pass‑through
