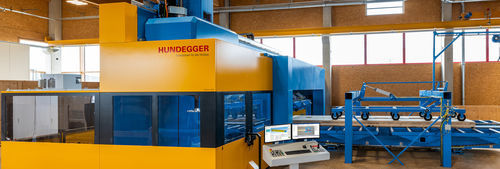

Multifunction cutting and machining center PBA-Drive 3600

CNCwooden

Product overview
The Hundegger PBA-Drive 3600 is a continuous panel processing center designed for CLT that enables six-sided machining without turning the panels. It pairs flexible material flow with precision components — high-precision heavy-duty chain conveyor and three HMC measuring systems per table unit — to deliver repeatable accuracy and suitability for varying production volumes.

The all-rounder
The PBA-Drive 3600 features a modular concept and configurable material flow to match customer requirements. Powerful multi-axis units (up to 5 axes) allow all-side machining in a single pass. A fully encapsulated machine cabin with floating dust extraction and integrated waste removal confines chips and dust and reduces cleaning and maintenance efforts.

Maximum workpiece dimensions

• Basic machining widths up to 3,660 mm
• Maximum CLT panel height up to 400 mm

THE HIGHLIGHTS OF THE PBA-Drive 3600
Three HMC measuring systems per table unit and a precision chain conveyor ensure consistent transport and positioning. The machine enables six-sided processing of CLT panels without flipping, supporting efficient, continuous workflows.

Key machine units and performance

• 5-axis unit, 63 kW, with tool magazine (enables machining of multiple side surfaces in one pass)
• 3-axis milling aggregate, 43 kW, with horizontal deep-hole drilling unit
• Fully encapsulated machine cabin with floating dust extraction
• Integrated waste disposal within the machining zone

How you benefit

• All-side machining of CLT panels without turning
• Reduced external dust and simpler chip removal via cabin extraction
• Simultaneous panel processing and formatting
• Efficient material flow for continuous operation
• Easy integration with automatic feeding systems

Variants / Maximum processing dimensions (raw part)

• Length: min. 4,000 mm — max. dependent on rail length
• Width: min. 1,250 mm — max. 3,660 mm
• Height: min. 60 mm — max. 400 mm

Installation and automation
Multiple feeding and discharge options support concepts from manual loading/unloading to fully automated continuous material flow. A self-developed heavy-duty chain conveyor and an automatically controlled alignment unit enable precise pre-positioning and reliable transport of large, heavy CLT panels.

Software / CAMBIUM
CAMBIUM is Hundegger's 3D software platform for job preparation and production. It provides a single interface for Hundegger machines, BVX2 connectivity, automated calculations, nesting and optimization, reporting and standard IT interfaces, and integration with infeed and storage systems.

Processing examples
From CAD to finished component: formatting, milling, drilling, sawing, slotting and angle machining are supported through the multi-unit configuration and automation options.

Characteristics / technical specifications

• Model: PBA-Drive 3600
• Processing concept: six-sided machining without turning
• Transport: high-precision heavy-duty chain conveyor (self-developed)
• Measuring: three HMC measuring systems per table unit
• Main units: 5-axis unit (63 kW) with tool magazine; 3-axis milling aggregate (43 kW) with deep-hole drilling
• Maximum width (basic machining): up to 3,660 mm
• Maximum panel height: up to 400 mm (min. 60 mm)
• Length (raw part): min. 4,000 mm — max. dependent on rail length
• Clamping: optimized clamping position close to machining area
• Machine zone: fully encapsulated cabin with floating dust extraction and integrated waste disposal
• Automation: options from manual to fully automated continuous material flow; automatic alignment/pre-positioning unit
• Software: CAMBIUM 3D for job preparation, optimization and machine interface
