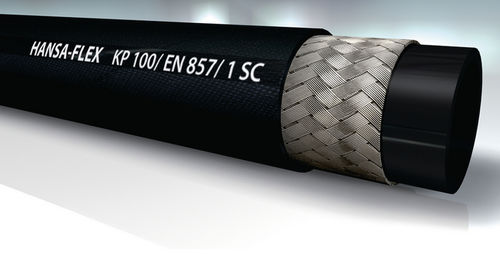

Water hose KP 100 for mineral oilsynthetic rubbermedium-pressure
Add to favorites
Compare this product
Characteristics
- Use
- for water, for mineral oil
- Material
- synthetic rubber
- Applications
- medium-pressure
- Other characteristics
- oil-resistant, weather-resistant, small bend radius, wire-braided
- Inner diameter
Max.: 25.4 mm
(1 in)Min.: 6.4 mm
(0.252 in)- Outer diameter
Max.: 34.9 mm
(1.374 in)Min.: 13.5 mm
(0.531 in)- Pressure
Max.: 225 bar
(3,263.349 psi)Min.: 88 bar
(1,276.332 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Application
Medium pressure circuits with restricted installation spaces
Pre-control hoses
Return hoses
Special features
narrow bending radius
Insert
one high tensile steel wire braided insert
Colour
black
Note
Die Längenänderung des Schlauches wird bei Prüfung nach EN ISO 1402 bei max. Betriebsdruck ermittelt.
Elongation
+ 2 % to - 4 %
Standard
EN 857 1SC
Media
Polyglycol based oil
Water-oil emulsions
