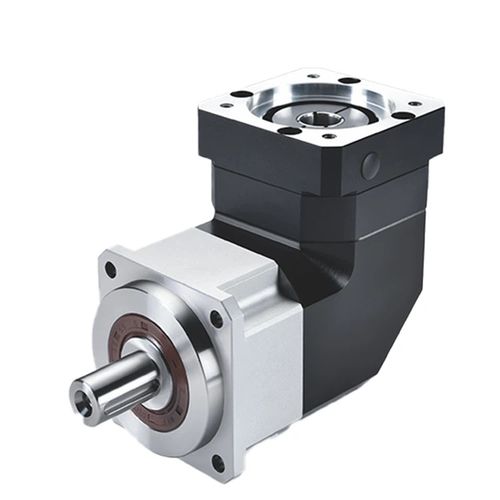

Planetary gearbox PGHR 220 series

epicyclicright anglecoaxial

Often known as an external gearbox, the PGHR 220 planet epicyclic gear box presents many design benefits. One can change speed, change the direction of rotation, and modify torque by rearranging the configuration of the planetary system without locking the ring gear. Furthermore, the stationary output shaft lets torque pass through the ring gear. Comprising a sun gear, planet gears, planet carrier and inner ring gear, planetary gear-Planet Epicyclic Gear-is a small and effective power transmission tool. High torque density (transmitting higher torque in a small volume), high efficiency (up to 95% or more), multiple speed ratio selection (several speed ratios can be obtained by changing the number of teeth), modular design (simple to customize and maintain). Often found in robotics, automation tools, and automotive transmissions, fit for situations with exact space and efficiency criteria. Often known as an external gearbox, the PGHR 220 planet epicyclic gear box presents many design benefits. One can change speed, change the direction of rotation, and modify torque by rearranging the configuration of the planetary system without locking the ring gear. Furthermore, the fixed output shaft lets torque be passed through the ring gear. Many facets of mechanical engineering depend on planet epicyclic gear boxes since they are needed everywhere high power and speed are required as well as exactly matched inertia ratios. Moreover very efficient in reaching large ratios with simplicity, planetary gearboxes are flexible in many uses. What are Advantages of planet epicyclic gear box 1. Input and output shafts' coaxial alignment. 2. Load division among several planetary gears.
