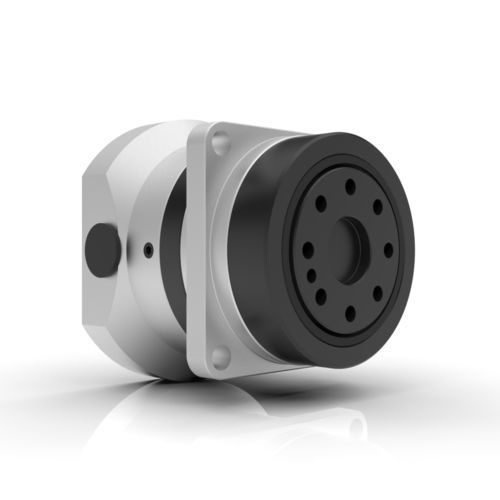

Zero-backlash gearbox CSG-GHplanetaryharmoniccoaxial
Add to favorites
Compare this product
Characteristics
- Type
- planetary, harmonic
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 50 - 100 Nm, 20 - 50 Nm, 1 - 2 kNm, 2 - 5 kNm, 10 - 20 Nm
- Performance
- high-torque, zero-backlash
- Applications
- for servo motors, shaft
- Other characteristics
- with flange, motor
- Rotational speed
2,800 rpm, 3,800 rpm, 4,800 rpm, 6,500 rpm, 8,500 rpm
(17,592.92 rad.min-1, 23,876.1 rad.min-1, 30,159.29 rad.min-1, 40,840.7 rad.min-1, 53,407.08 rad.min-1)- Gear ratio
50 unit, 80 unit, 100 unit, 120 unit, 160 unit
Description
Zero-Backlash CSG-GH Harmonic Drive® gearheads deliver 30% higher torque than our standard (CSF-GH) gearhead with 42% longer life while maintaining the same and high accuracy and repeatability. The CSG-GH Series utilizes our proprietary S tooth profile for unrivaled performance. The Quick Connect® coupling design allows easy mounting of any servo motor.
Zero Backlash
Available in 5 Frame Sizes
Accuracy: <1 arc-min
Repeatability: ±4 to ±10 arc-sec
Cross Roller output bearing
Available with flange output, output shaft without key or shaft with key and center tapped hole
