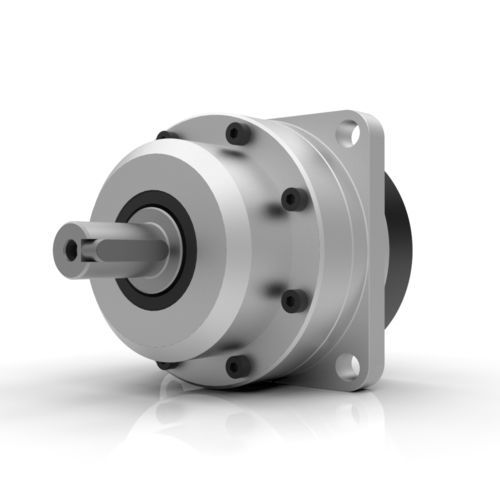

Planetary gearhead HPG-U1harmoniccoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, harmonic
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 1 - 5 Nm, 10 - 20 Nm, 20 - 50 Nm, 5 - 10 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
- Number of stages
- single-stage, two-stage
- Performance
- high-efficiency, high-performance, low-backlash, high load capacity
- Applications
- shaft
- Other characteristics
- flange
- Rotational speed
Max.: 10,000 rpm
(62,831.85 rad.min-1)Min.: 2,500 rpm
(15,707.96 rad.min-1)- Gear ratio
Max.: 50 unit
Min.: 3 unit
Description
The HPG Harmonic Planetary® gearhead has the same high performance specifications as our standard HPG series but with an input shaft for shaft couplings or for use with motor offset with a belt drive. Same as the HPG, this gearhead incorporates continuous backlash compensation that ensures low backlash throughout the life of the gear. The large Cross Roller bearing serves as the output flange and can support large loads with high moment stiffness. HPG planetary gears are available with a flange output, smooth output shaft or a shaft with a key and tapped center hole.
Shaft Input
Available in 6 Frame Sizes
High Efficiency
Backlash <3 arc-min (<1 arc-min available as an option)
High load capacity Cross Roller output bearing
