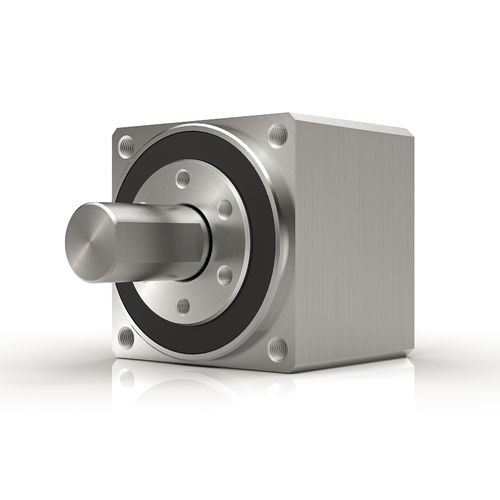

Strain wave gearhead CSF-1U-CC
coaxialsolid-shaft1 - 5 Nm

strain wave gearhead
strain wave gearhead
strain wave gearhead
strain wave gearhead
strain wave gearhead
strain wave gearhead
strain wave gearhead
Add to favorites
Compare this product


Characteristics

Type
strain wave
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
1 - 5 Nm, 0.2 - 0.5 Nm, 0.5 - 1 Nm, 0.1 - 0.2 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 50 - 100 Nm
Performance
high-torque, zero-backlash
Applications
for medical applications, for automation
Other characteristics
compact, miniature, for robotics
Rotational speed

3,500 rpm, 6,500 rpm
(21,991.15 rad.min-1, 40,840.7 rad.min-1)

Gear ratio

30 unit, 50 unit, 80 unit, 100 unit

Description

The CSF 1U-CC mini gearheads are designed to be mounted to a motor with the use of an adapter plate. These square body gearheads are available with a shaft output or flange output. CSF-3 supermini is our smallest strain wave gear available today. For a complete actuator incorporating this gearhead, see RSF-3 supermini. Key Features: Zero backlash High positioning accuracy (± 1.5 to 10 arc-min ) in a very compact package Compact 4-point ball bearing mounted in main shaft ⌀13mm~52mm Mass 11.4g~335 S tooth profile
