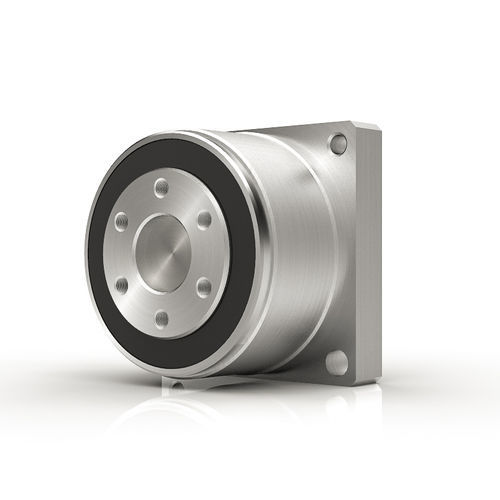

Strain wave gearhead CSF-2XHcoaxialsolid-shaft0.2 - 0.5 Nm
Add to favorites
Compare this product
Characteristics
- Type
- strain wave
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 1 - 5 Nm, 10 - 20 Nm, 20 - 50 Nm, 5 - 10 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 50 - 100 Nm
- Performance
- zero-backlash
- Applications
- for servo motors
- Other characteristics
- compact, for robotics, miniature
- Rotational speed
3,500 rpm, 6,500 rpm
(21,991.15 rad.min-1, 40,840.7 rad.min-1)- Gear ratio
30 unit, 50 unit, 80 unit, 100 unit
Description
Available with an output shaft or flange, the CSF 2XH miniature gearheads are designed to couple directly to any servomotor. The motor shaft is attached directly to the gearhead input element. CSF-2XH miniature gearhead is offered in 4 sizes with gear ratios 30:1 to 100:1 and peak torque: .5~28Nm. These mini strain wave gears are ideal for semiconductor and robotics applications.
Key Features:
Zero backlash
High positioning accuracy (± 1.5 to 10 arc-min ) in a very compact package
Compact 4-point ball bearing mounted in main shaft
⌀22mm~53mm
S tooth profile
Flange (F) or Shaft (J) output available
