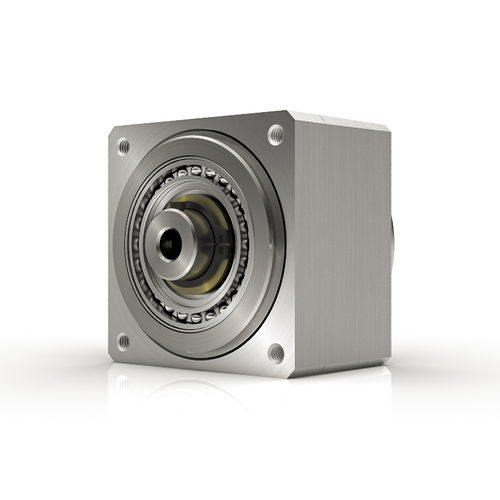

Strain wave gearhead CSF-1U-CC-Fcoaxialsolid-shaft0.2 - 0.5 Nm
Add to favorites
Compare this product
Characteristics
- Type
- strain wave
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 1 - 5 Nm, 10 - 20 Nm, 20 - 50 Nm, 5 - 10 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 50 - 100 Nm
- Performance
- high-torque, zero-backlash
- Applications
- for automation, for medical applications
- Other characteristics
- compact, for robotics
- Rotational speed
3,500 rpm, 6,500 rpm
(21,991.15 rad.min-1, 40,840.7 rad.min-1)- Gear ratio
30 unit, 50 unit, 80 unit, 100 unit
Description
Zero backlash
High positioning accuracy (± 1.5 to 10 arc-min ) in a very compact package
Compact 4-point ball bearing mounted in main shaft
⌀21mm~52mm
Mass 25g~295g
S tooth profile
