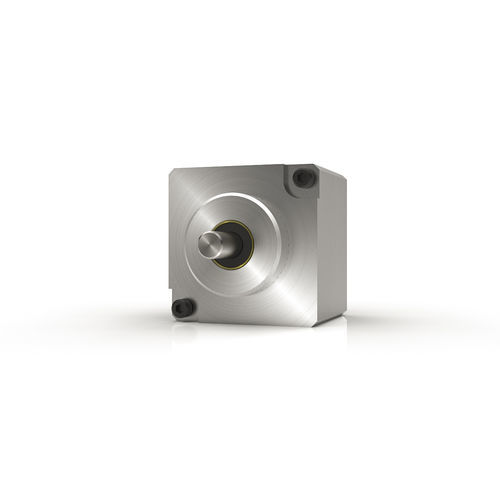

Strain wave gearhead CSF seriescoaxialsolid-shaft0.5 - 1 Nm
Add to favorites
Compare this product
Characteristics
- Type
- strain wave
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 1 - 5 Nm, 10 - 20 Nm, 20 - 50 Nm, 5 - 10 Nm, 0.5 - 1 Nm, 50 - 100 Nm
- Performance
- high-torque, zero-backlash
- Applications
- for automation, for medical applications
- Other characteristics
- compact, for robotics, with flange
- Rotational speed
3,500 rpm, 6,500 rpm
(21,991.15 rad.min-1, 40,840.7 rad.min-1)- Gear ratio
30 unit, 50 unit, 80 unit, 100 unit
Description
1U-F indicates Gear unit with flange output and shaft input.
Available in Four sizes
Outline Dimensions: 20mm~51mm
