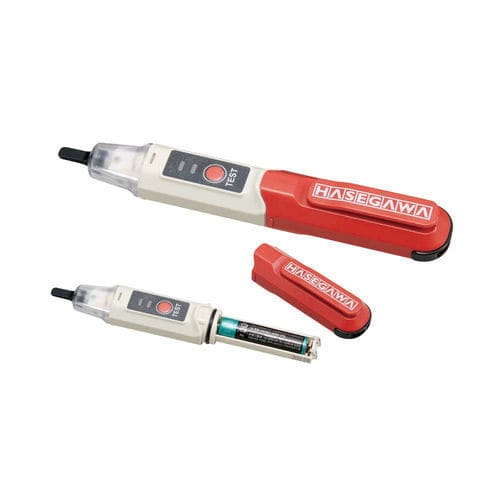

Low-voltage detector HTE-700 serieswaterproofhand-held
Add to favorites
Compare this product
Characteristics
- Detected entity
- low-voltage
- Other characteristics
- hand-held, waterproof
Description
Product name
HTE-610-Y / M / I low-voltage detector
Overview
Safety and usage notes
Technical specifications
HTE-610-Y / M / I low-voltage detector
Overview
- Conductive rubber sensing tip to reduce risk of short-circuit at the detection point.
- Adjustable sensitivity via a control volume to adapt to different detection conditions.
- Sensing performance similar for bare and insulated conductors.
- Sold as main unit (with clip) or as clip-only accessory.
- Color codes: HTE-610-□ — Y: Yellow / M: Marine Blue / I: Ivory.
Safety and usage notes
- Hold the ground terminal with bare hands or connect a grounding wire to earth according to company/site standards.
- A grounding wire is necessary to detect DC voltages.
- For AC ≤ 80 V, grounding wire may be required for reliable detection.
- Shielded (conductive shield) cables cannot be detected by this device.
Technical specifications
- Operating method: AC voltage detection
- Working voltage range: AC 50–600 V, DC 12–750 V
- Operation starting voltage (voltage to ground): AC 15 ±5 V, DC 6 ±3 V
- Sensing tip: conductive rubber
- Sensitivity: adjustable via sensitivity control
- Audible alert: ≥ 50 dB
- Frequency: 50/60 Hz
- Operating temperature range: -10°C to +40°C
- Weight: 25 g (excluding battery)
- Battery: AAA (R03/LR03 1.5 V) × 1
- Sales form: main unit (with clip) or clip only
