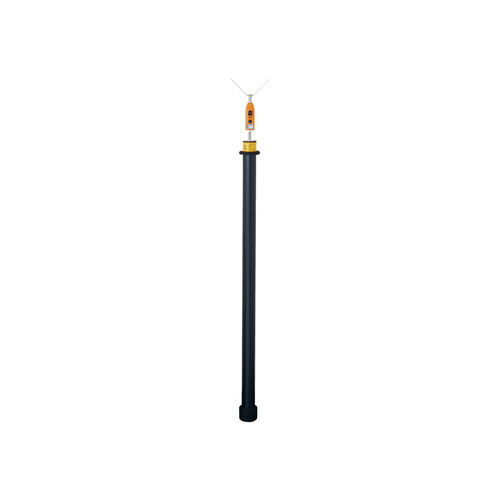

AC voltage detector HST-W80L

high-voltagemedium-voltagewaterproof

Overview
HST series medium- and high-voltage detectors for use with hot sticks. FRP insulating stick for lightweight operability; tip metal fitting includes a shock-absorbing spring. Operating rod can be extended to longer lengths; shortening is prohibited for safety.

Key features

• FRP insulating stick compatible with hot-stick operation
• Tip metal fitting with shock-absorbing spring
• Operating rod extendable for increased reach
• Designed for AC medium- to high-voltage detection (model-dependent ranges)

Usage notes

• For voltage detection on medium and high voltage lines using a hot stick
• Do not shorten the operating rod for safety reasons
• Check model specifications before use for DC/AC capability

Models and detection ranges (examples)

• HST-30 — AC: 3 kV to 34.5 kV
• HST-70 — AC: 20 kV to 80.5 kV
• HST-170 — AC: 60 kV to 195.5 kV
• HST-250 — AC: 150 kV to 287.5 kV
• HST-30L — AC: 3 kV to 34.5 kV (long length for feeder)
• HST-70L — AC: 20 kV to 80.5 kV (long length for feeder)
• HST-W80L — AC: 20 kV to 80.5 kV (long length, W-type)

Related products

• HSR-500 — Extra-high voltage detector (250 kV to 550 kV) with flashing LED and intermittent buzzer
• HST-20N / HSR-90N — Medium/high voltage detectors with AC/DC or wide-range detection options
• WM Series — Pinwheel-type, battery-less detector for 6.6 kV to 500 kV

Specifications

• Insulating material: FRP (fiberglass reinforced plastic)
• Tip fitting: metal with shock-absorbing spring
• Rod: extendable to longer lengths; shortening not permitted
• Detection: primarily AC (see individual models for DC/dual capability)
• Refer to product catalogue PDFs and specification images for accessories and model-specific details
