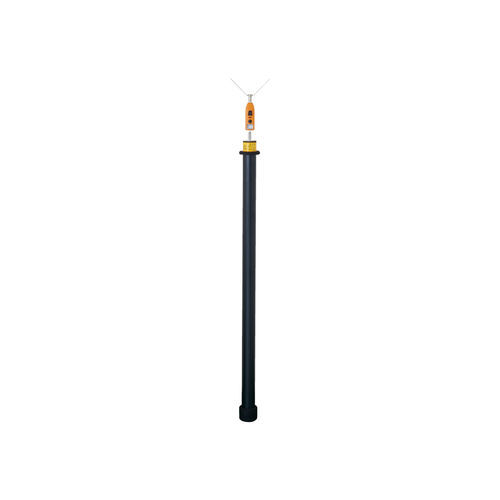

AC voltage detector HST-70L
high-voltagemedium-voltagewaterproof

AC voltage detector - HST-70L - Hasegawa Electric Co., Ltd. - high-voltage / medium-voltage / waterproof
AC voltage detector - HST-70L - Hasegawa Electric Co., Ltd. - high-voltage / medium-voltage / waterproof
AC voltage detector - HST-70L - Hasegawa Electric Co., Ltd. - high-voltage / medium-voltage / waterproof - image - 2
AC voltage detector - HST-70L - Hasegawa Electric Co., Ltd. - high-voltage / medium-voltage / waterproof - image - 3
AC voltage detector - HST-70L - Hasegawa Electric Co., Ltd. - high-voltage / medium-voltage / waterproof - image - 4
Add to favorites
Compare this product
Go to the Hasegawa Electric Co., Ltd. website for more information

Characteristics

Detected entity
high-voltage, AC voltage, medium-voltage
Other characteristics
hand-held, waterproof

Description

Product overview
  • Series of voltage detectors for medium to extra-high voltage lines, operable with a hot stick (insulating operating rod).
  • Models cover detection ranges from approx. 3 kV up to 550 kV and include AC-only and AC/DC variants.


Key features (common)
  • FRP insulating stick for lightweight handling and improved operability with hot-stick methods.
  • Tip metal fitting equipped with a shock-absorbing spring to reduce probe-tip impact.
  • Operating rod configurable to longer lengths for extended reach; shortening the rod is not permitted for safety.
  • Positive indication on selected models via flashing high-luminous red LED and intermittent buzzer for visibility and audibility in noisy/bright environments.
  • Waterproof sensor enclosure on specific models to protect against dirt and water ingress.


Available models and main specifications
  • HST-30 — AC detection range: approx. 3 kV to 34.5 kV.
  • HST-70 — AC detection range: approx. 20 kV to 80.5 kV.
  • HST-170 — AC detection range: approx. 60 kV to 195.5 kV.
  • HST-250 — AC detection range: approx. 150 kV to 287.5 kV.
  • HST-30L / HST-70L / HST-W80L — Long-length variants for feeders with the same detection bands as corresponding standard models.
  • HST-20N — Dual AC/DC detection: approx. 3 kV to 25 kV; reduced weight compared to predecessor models.
  • HSR-90N — Wide-range AC/DC detection: approx. 6 kV to 90 kV; positive indication and waterproof sensor housing.
  • HSR-500 — Extra-high voltage AC detector: approx. 250 kV to 550 kV; positive indication and waterproof sensor housing for reliability on transmission lines.
  • WM Series — Pinwheel-type detector: AC detection approx. 6.6 kV to 500 kV; battery-less operation using energy from the detected voltage; pinwheel rotation indicates presence of voltage.


Notes on indications and protection
  • Selected high-voltage models provide both visual (flashing LED) and audible (intermittent buzzer) positive indication to ensure detection in daylight and noisy sites.
  • Fully enclosed waterproof sensors on specific models reduce failure risk from dirt and water, increasing field reliability.


Documentation and variants
  • Model-specific specification sheets and catalogues are available for HST, HST-L, HST-20N, HSR and WM families detailing electrical ranges, dimensions and accessories.


Related product — railway substation earthing hook
  • Model: H型-R — earthing/short-circuit hook for railway substations (DC rated). Clip-type attachment for rapid installation; compact design for confined spaces.
  • Typical rating: DC 1500 V (refer to model list for exact marking).
  • Accessory: storage bag available.


Technical specifications
  • Insulating stick material: FRP (glass-fiber reinforced plastic) for lightweight operability.
  • Tip: metal fitting with shock-absorbing spring.
  • Operating rod: extendable to longer lengths only (shortening prohibited for safety).
  • Detection types: mainly AC; selected models support AC and DC detection (e.g., HST-20N, HSR-90N).
  • Voltage detection ranges: approx. 3 kV up to 550 kV depending on model.
  • Indication: visual (flashing LED) and audible (intermittent buzzer) on selected models.
  • Waterproofing: sensor enclosure provided on specific models to prevent ingress of dirt and water.
  • WM Series: battery-less pinwheel operation using detected voltage energy.
