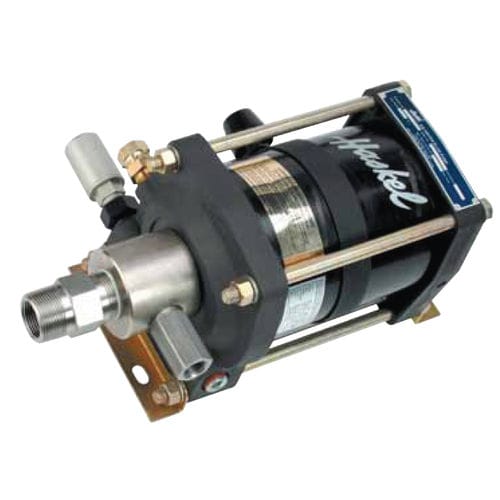

Piston pump ATV

for liquified gaswaterfor chemicals

High-Pressure Air Driven Liquid Pump 2 and 2.2 hp Series Choice of 16 models, 13 ratios, 46 possible combinations Output pressures to 100000 psi (7000 bar) Flows to 5 gpm (15 l/min) Choice of wetted materials Double and triple air heads Drive pressure 3 to 100 psi (.2 to 7 bar) The 2 and 2.2 hp models expand the series into very high‑pressure operation while offering greater flexibility in air drive configuration. With options for single, double, or triple air heads and a wide selection of ratios, these models are suited for advanced testing, intensification, and process applications where pressure range and adaptability are more important than maximum flow. To assist in easier pump selection, we have classified various popular liquids in groups and assigned to each group a service code. These service code numbers are featured in the chart to the right and are designated for each pump series. Seals and other wetted materials can be supplied to suit your preferred liquid. For advice, please contact our technical services personnel at 818-843-4000.
