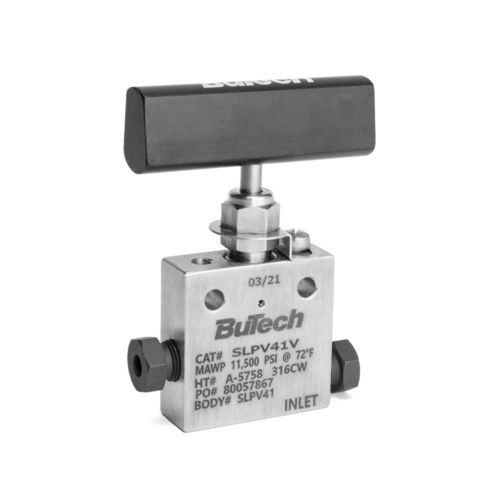

Needle valve SLPV series

lever controlflow controlpetroleum

Needle Valve Features: Non-rotating stem prevents galling and scoring Five stem styles: Vee Regulating Metering Micro-Metering 17-4PH Stem for longer service life. 316 wetted parts are also available by specifying option -316WP Glass-filled PTFE packing for temperatures up to 600°F (315°C) Integral through holes for bracket mounting, a panel mounting option is also available Wide range of options allow customizing of valve Positive gland locking device BuTech Low Pressure Valves are designed for liquid and gas flow control in petroleum, chemical, power generating and general industrial applications. Available in a variety of body styles, the valves are designed for operation at temperatures ranging from 0 to 650 F. Their rugged construction provides assurance of fail-safe operation at pressures ranging to 15,000 PSI (1030 bar). Note: BuTech Pressure Systems does not recommend compression sleeve connections below 0°F (-18°C) or above 650°F (343°C). Materials of Construction Standard materials of construction include 316 cold-worked stainless steel, 17-4PH, Ampco 45, and glass-filled PTFE. All BuTech equipment may also be produced in any machinable metal. Some of the more common exotic materials used are: Hastelloy™ Inconel™ Titanium Monel 400™ Tube Sizes: 1/8" through 1/2" ; Pressures to 15,000 PSI (1030 bar) ; Type: L/P Single Ferrule Compression
