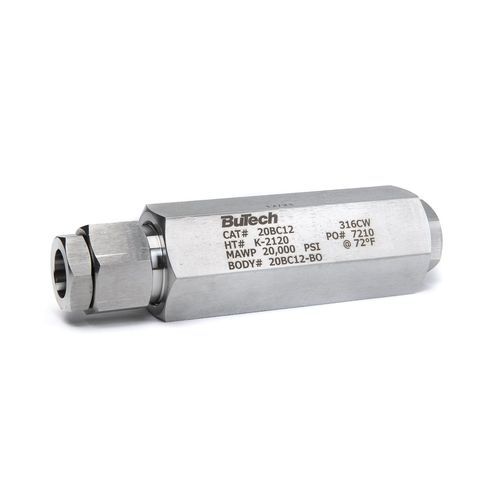

High-pressure check valve C series

ballfor airthreaded

BuTech ball check valves prevent reverse flow where leak-tight shutoff is not necessary. Standard materials of construction are 316 stainless steel with 17-4PH poppet for longer life, and 300 series stainless steel spring. Cracking pressure: 15 PSI (1 bar) approximate Operating Temperature Range:-420° to +1200°F (-251° to +648°C) BuTech o-ring check valves reliably prevent backflow where leak-tight shutoff for liquids or gases is required. Standard materials of construction are 316 stainless steel with Buna-N o-ring and 300 series stainless steel spring. Cracking pressure: 15 PSI (1 bar) approximate BuTech ball check valves prevent reverse flow where leak-tight shutoff is not necessary. Standard materials of construction are 316 stainless steel with 17-4PH poppet for longer life, and 300 series stainless steel spring. Note: For 316ss wetted parts, add -316WP to the catalog number. Cracking pressure: 15 PSI (1 bar) approximate Operating Temperature Range:-420° to +1200°F (-251° to +648°C) BuTech o-ring check valves reliably prevent backflow where leak-tight shutoff for liquids or gases is required. Standard materials of construction are 316 stainless steel with Buna-N o-ring and 300 series stainless steel spring. Cracking pressure: 15 PSI (1 bar) approximate
